TLE4935G
ObsoleteInfineon Technologies

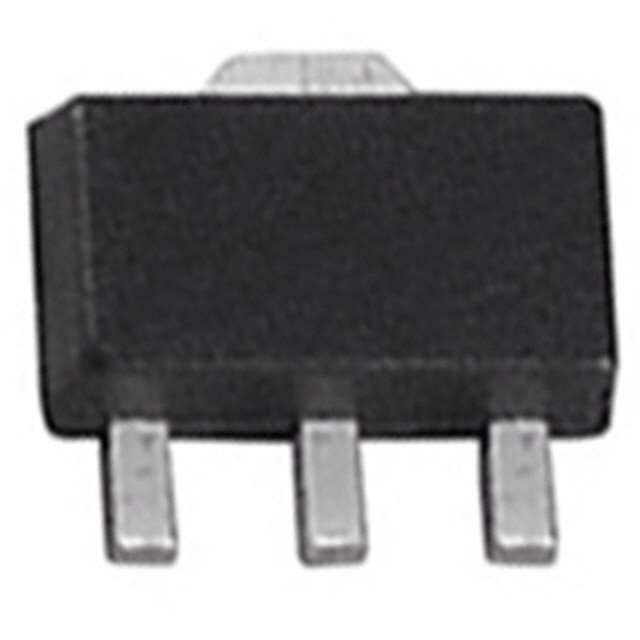

MAGNETIC SWITCH LATCH SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLE4935G
ObsoleteInfineon Technologies
MAGNETIC SWITCH LATCH SOT89-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE4935G |
|---|---|
| Current - Output (Max) [Max] | 100 mA |
| Current - Supply (Max) [Max] | 5 mA |
| Features | Temperature Compensated |
| Function | Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Collector |
| Package / Case | TO-243AA |
| Polarization | South Pole |
| Supplier Device Package | PG-SOT89 |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLE4935 Series
Digital Switch Latch Open Collector Hall Effect PG-SOT89
Documents
Technical documentation and resources
