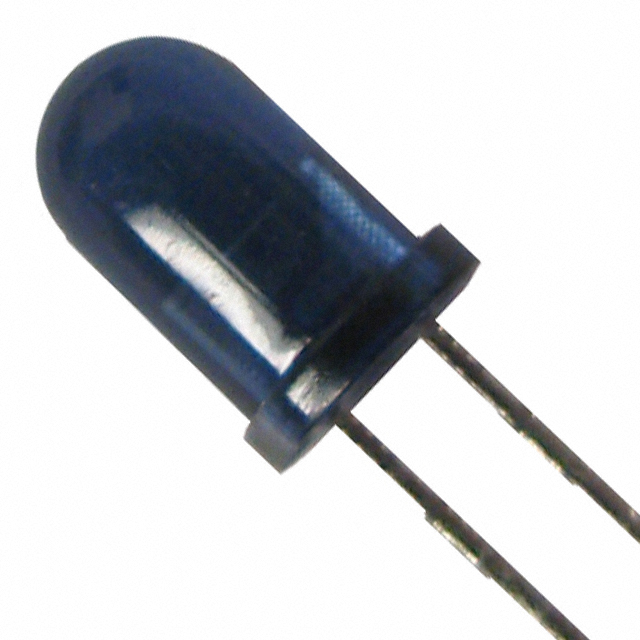

XTHI12BF

Active

SunLED

EMITTER IR 880NM 50MA RADIAL

Search across all available documentation for this part.

Active

SunLED

EMITTER IR 880NM 50MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	XTHI12BF

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	12 mW/sr
Type	Infrared (IR)
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

Part	Type	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Wavelength	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]
SunLED XTHI12W	Infrared (IR)	Through Hole	Radial	85 °C	-40 °C	Top View	880 nm	20 °	1.3 V	50 mA	12 mW/sr
SunLED XTHI12BF	Infrared (IR)	Through Hole	Radial	85 °C	-40 °C	Top View	880 nm	20 °	1.3 V	50 mA	12 mW/sr
SunLED XTHI12W850	Infrared (IR)	Through Hole	Radial	85 °C	-40 °C	Top View	850 nm	20 °	1.6 V	50 mA	40 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 880nm 1.3V 50mA 12mW/sr @ 50mA 20° Radial
