L17HTHBS4F1C

Active

Amphenol ICC (Commercial Products)

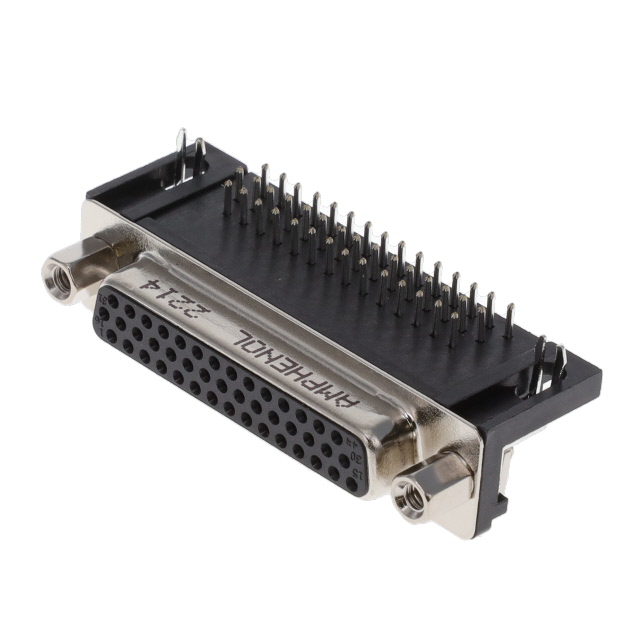

CONN D-SUB HD RCPT 44P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17HTHBS4F1C

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 44P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17HTHBS4F1C

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	300 VDC

L17HTHBS4 Series

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Type	Backset Spacing	Backset Spacing	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Form	Flange Feature	Voltage Rating	Dielectric Material	Connector Style	Connector Type	Termination	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17HTHBS4F4CMT	Gold	-55 °C	150 °C	Through Hole Right Angle	Copper Alloy	3	B DB	Signal	8.89 mm	0.35 in	3 A	UL94 V-0	44	0.76 Ám	30 Áin	3	Stamped	Female Screwlock (4-40) Mating Side	300 VDC	Thermoplastic Glass Filled	D-Sub High Density	Receptacle Female Sockets	Solder
Amphenol ICC (Commercial Products) L17HTHBS4F1C	Gold	-55 °C	150 °C	Through Hole Right Angle	Copper Alloy	3	B DB	Signal	8.89 mm	0.35 in	3 A	UL94 V-0	44			3	Stamped	Female Screwlock (4-40) Mating Side	300 VDC	Thermoplastic Glass Filled	D-Sub High Density	Receptacle Female Sockets	Solder	Flash
Amphenol ICC (Commercial Products) L17HTHBS4F2C	Gold	-55 °C	150 °C	Through Hole Right Angle	Copper Alloy	3	B DB	Signal	8.89 mm	0.35 in	3 A	UL94 V-0	44	0.38 µm	15 µin	3	Stamped	Female Screwlock (4-40) Mating Side	300 VDC	Thermoplastic Glass Filled	D-Sub High Density	Receptacle Female Sockets	Solder
Amphenol ICC (Commercial Products) L17HTHBS4R1C	Gold	-55 °C	150 °C	Through Hole Right Angle	Copper Alloy	3	B DB	Signal	8.89 mm	0.35 in	3 A	UL94 V-0	44			3	Stamped	4-40 Board Side	300 VDC	Thermoplastic Glass Filled	D-Sub High Density	Receptacle Female Sockets	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.24
		10	$ 3.85
		25	$ 3.64
		50	$ 3.56
		100	$ 3.39
		250	$ 2.97
		450	$ 2.88
		950	$ 2.46
		2400	$ 2.29

Description

General part information

L17HTHBS4 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
