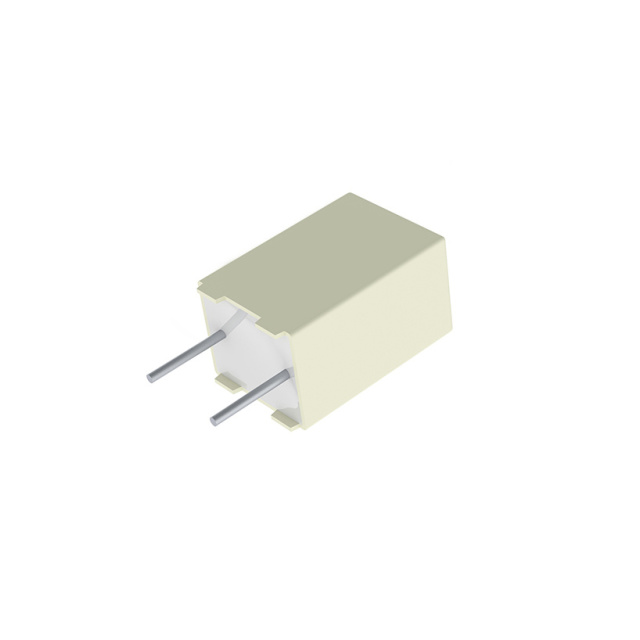

RSBIC1100JA00K

Active

KEMET

CAP FILM 1000PF 10% 250VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1000PF 10% 250VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	RSBIC1100JA00K

Applications	Automotive
Capacitance	0.001 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Features	High Temperature
Height - Seated (Max) [Max] [z]	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	7.2 mm
Size / Dimension [x]	0.283 in
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Lead Spacing	Lead Spacing	Voltage Rating - DC	Dielectric Material	Tolerance	Termination	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Applications	Package / Case	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]
KEMET RSBIC1220AA00K	7.2 mm	0.098 in	0.283 in	2.5 mm	High Temperature	5 mm	0.197 in	250 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	PC Pins	160 V	0.26 in	6.6 mm	AEC-Q200	Automotive	Radial	Through Hole	2200 pF	-55 °C	125 °C
KEMET RSBIC1100JA00K	7.2 mm	0.098 in	0.283 in	2.5 mm	High Temperature	5 mm	0.197 in	250 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	PC Pins	160 V	0.26 in	6.6 mm	AEC-Q200	Automotive	Radial	Through Hole	0.001 µF	-55 °C	125 °C
KEMET RSBIC2220Z300K	0.283 in 7.2 mm				High Temperature	5 mm	0.197 in	250 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	10 %	PC Pins	160 V	0.299 in	7.6 mm	AEC-Q200	Automotive	Radial	Through Hole	0.022 µF	-55 °C	125 °C	0.138 in 3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	51000	$ 0.08
Newark	Each	2500	$ 0.10

General part information

1000 pF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
