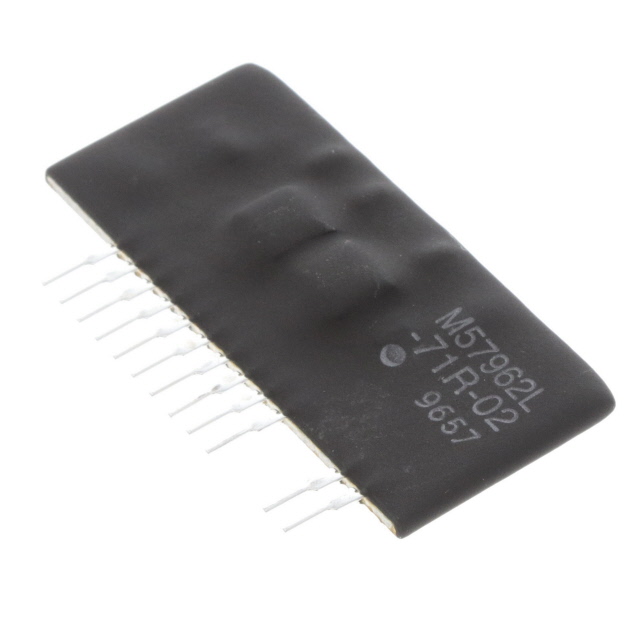

M57962L-71R-02

Active

Powerex Inc.

IC GATE DRVR LOW-SIDE MODULE

Search across all available documentation for this part.

Active

Powerex Inc.

IC GATE DRVR LOW-SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	M57962L-71R-02

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	5 A
Current - Peak Output (Source, Sink) [custom]	5 A
Driven Configuration	Low-Side
Gate Type	IGBT
Input Type	Non-Inverting
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	14-SIP Module, 12 Leads
Rise / Fall Time (Typ) [custom]	400 ns
Rise / Fall Time (Typ) [custom]	600 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	14 V

Part	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Supplier Device Package	Mounting Type	Channel Type	Operating Temperature [Min]	Operating Temperature [Max]	Gate Type	Package / Case	Driven Configuration
Powerex Inc. M57962L-71R-02	1	15 V	14 V	5 A	5 A	400 ns	600 ns	Non-Inverting	Module	Through Hole	Single	-20 C	60 °C	IGBT	14-SIP Module 12 Leads	Low-Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Low-Side Gate Driver IC Non-Inverting Module
