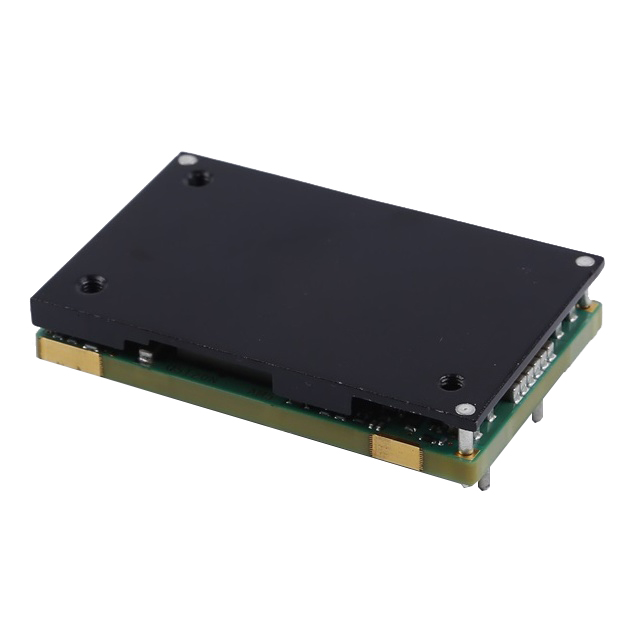

QBE4120N067N76

Active

NetPower

DC DC CONVERTER 12V 804W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 804W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBE4120N067N76	QBE4120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	67 A	42 - 67 A
Efficiency	95.5 %	95.5 %
Features	Remote On/Off, Baseplate	Remote On/Off, Baseplate, Adjustable Output, Remote Sense, Heat Sink
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Quarter Brick	Quarter Brick
Power (Watts)	804 W	504 - 804 W
Size / Dimension [x]	58.2 mm, 2.29 in	2.29 - 58.2 mm
Size / Dimension [y]	37.1 mm, 1.46 in	1.46 - 37.1 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Supplier Device Package	Quarter Brick	Quarter Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	60 V	60 - 75 V
Voltage - Input (Min) [Min]	40 V	36 - 40 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 804W

Part	Number of Outputs	Applications	Features	Power (Watts)	Mounting Type	Package / Case	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Supplier Device Package	Voltage - Isolation
NetPower QBE4120N067N76	1	ITE (Commercial)	Baseplate, Remote On/Off	804 W	Through Hole	Quarter Brick	Active Low, Enable	85 °C	-40 °C	40 V	67 A	CE, cURus	12 V	Isolated Module	60 V	1.46 in, 37.1 mm	12.7 mm	2.29 in, 58.2 mm	95.5 %	Quarter Brick	2250 VDC
NetPower QBE4120N042R96	1	ITE (Commercial)	Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense	504 W	Through Hole	Quarter Brick	Active Low, Enable	85 °C	-40 °C	36 V	42 A	CE, cURus	12 V	Isolated Module	75 V	1.46 in, 37.1 mm	12.7 mm	2.29 in, 58.2 mm	95.5 %	Quarter Brick	2250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 98.20

General part information

Isolated Module DC DC Converter 1 Output 12V 67A 40V - 60V Input
