966140-6
ActiveTE Connectivity AMP Connectors

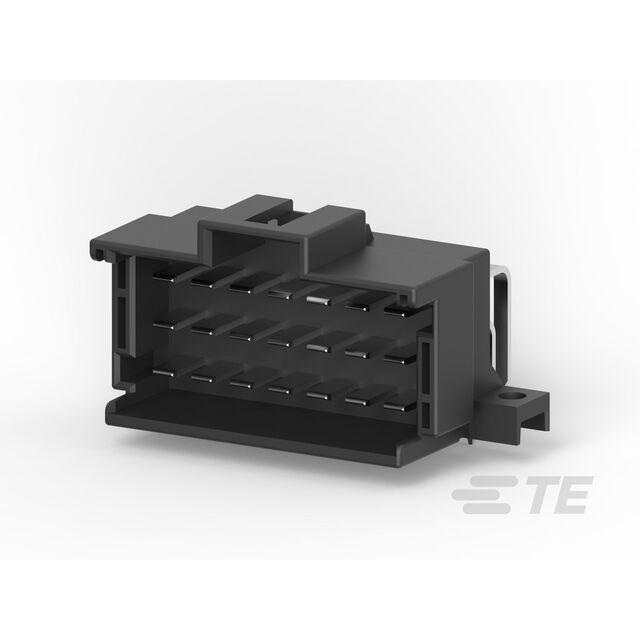

CONN HEADER R/A 21POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
966140-6
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 21POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 966140-6 | 966140 Series |
|---|---|---|
| Applications | Automotive, General Purpose | Automotive, General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Silver |
| Contact Finish - Post | - | Tin |
| Contact Length - Post | 0.118 in | 0.118 in |
| Contact Length - Post | 3 mm | 3 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Mounting Flange | Mounting Flange |
| Insulation Color | Black | Natural, Black |
| Insulation Height | 1.012 in | 1.012 in |
| Insulation Height | 25.7 mm | 25.7 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | - | UL94 HB |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 21 | 6 - 21 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 - -30 °C |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Row Spacing - Mating | 0.217 in | 0.217 in |
| Row Spacing - Mating | 5.51 mm | 5.51 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | - | 24 - 28 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.89 | |
| 10 | $ 9.85 | |||
| 140 | $ 8.55 | |||
| 560 | $ 8.18 | |||
966140 Series
CONN HEADER R/A 21POS 5MM
| Part | Termination | Contact Finish - Mating | Mounting Type | Contact Type | Contact Shape | Fastening Type | Style | Number of Positions Loaded | Insulation Material | Connector Type | Contact Length - Post | Contact Length - Post | Applications | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Shrouding | Insulation Color | Contact Material | Number of Rows | Number of Positions | Features | Voltage Rating | Contact Finish - Post | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-966140-6 | Solder | Silver | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Natural | Copper Alloy | 3 | 21 | Mounting Flange | |||
TE Connectivity AMP Connectors 9-966140-2 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 15 | Mounting Flange | ||||
TE Connectivity AMP Connectors 3-966140-2 | Solder | Silver | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 15 | Mounting Flange | |||
TE Connectivity AMP Connectors 966140-1 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -30 ░C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 18 | Mounting Flange | 28 VDC | Tin | ||
TE Connectivity AMP Connectors 9-966140-5 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 6 | Mounting Flange | 24 VDC | UL94 HB | ||
TE Connectivity AMP Connectors 966140-6 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 21 | Mounting Flange | ||||
TE Connectivity AMP Connectors 966140-4 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -30 ░C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 9 | Mounting Flange | 28 VDC | Tin | ||
TE Connectivity AMP Connectors 966140-3 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 12 | Mounting Flange | ||||
TE Connectivity AMP Connectors 966140-2 | Solder | Through Hole, Right Angle | Tab | Rectangular | Latch Holder | Board to Board, Cable | All | Polyamide (PA66), Nylon 6/6, Glass Filled | Header | 0.118 in | 3 mm | Automotive, General Purpose | 0.217 in | 5.51 mm | 5 mm | 0.197 " | 100 °C | -40 °C | 1.012 in | 25.7 mm | Shrouded - 4 Wall | Black | Copper Alloy | 3 | 15 | Mounting Flange |
Description
General part information
966140 Series
Connector Header Through Hole, Right Angle 21 position 0.197" (5.00mm)
