4-794627-6

Active

TE Connectivity AMP Connectors

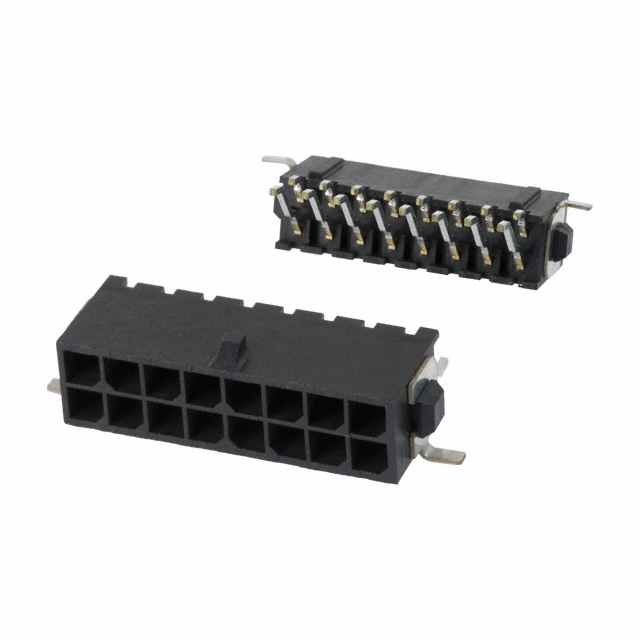

CONN HEADER SMD R/A 16POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-794627-6

Active

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 16POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.66
		10	$ 4.09
	Digi-Reel®	1	$ 4.66
		10	$ 4.09
	Tape & Reel (TR)	150	$ 3.66
		300	$ 3.64
		750	$ 3.40
		1050	$ 3.04

Description

General part information

794627 Series

Connector Header Surface Mount, Right Angle 16 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Specification	4-794627-6	794627 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	16	16
Number of Positions	-	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

Part

Operating Temperature [Min]

Operating Temperature [Max]

Number of Positions

Material Flammability Rating

Contact Material

Number of Positions Loaded

Contact Type

Applications

Contact Finish Thickness - Post

Row Spacing - Mating

Features

Shrouding

Voltage Rating

Termination

Contact Finish - Post

Fastening Type

Mounting Type

Insulation Height

Contact Shape

Insulation Material

Number of Rows

Current Rating (Amps)

Style

Contact Finish Thickness - Mating

Connector Type

Insulation Color

Pitch - Mating

Contact Finish - Mating

Number of Positions

TE Connectivity AMP Connectors

3-794627-2

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

TE Connectivity AMP Connectors

2-794627-4

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin-Lead

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

Tin-Lead

TE Connectivity AMP Connectors

5-794627-0

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

TE Connectivity AMP Connectors

1-794627-6

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin-Lead

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

Tin-Lead

TE Connectivity AMP Connectors

4-794627-6

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

TE Connectivity AMP Connectors

4-794627-8

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

TE Connectivity AMP Connectors

4-794627-0

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

TE Connectivity AMP Connectors

4-794627-2

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

TE Connectivity AMP Connectors

794627-4

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin-Lead

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

Tin-Lead

TE Connectivity AMP Connectors

5-794627-4

-40 °C

105 ░C

UL94 V-0

Brass

All

Male Pin

General Purpose

2.54 µm

100 µin

3 mm

0.118 in

Solder Retention

Shrouded - 4 Wall

250 VDC

Solder

Tin

Locking Ramp

Surface Mount, Right Angle

7.37 mm

0.29 in

Square

Nylon, Polyamide (PA)

Varies by Wire Gauge

Board to Cable/Wire

2.54 çm

100 çin

Header

Black

0.118 in

3 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Contact Material	Number of Positions Loaded	Contact Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Features	Shrouding	Voltage Rating	Termination	Contact Finish - Post	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Number of Rows	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 3-794627-2	-40 °C	105 ░C	2	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black
TE Connectivity AMP Connectors 2-794627-4	-40 °C	105 ░C	24	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin-Lead	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm	Tin-Lead
TE Connectivity AMP Connectors 5-794627-0	-40 °C	105 ░C	20	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm
TE Connectivity AMP Connectors 1-794627-6	-40 °C	105 ░C		UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin-Lead	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm	Tin-Lead	16
TE Connectivity AMP Connectors 4-794627-6	-40 °C	105 ░C		UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm		16
TE Connectivity AMP Connectors 4-794627-8	-40 °C	105 ░C	18	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794627-0	-40 °C	105 ░C	10	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794627-2	-40 °C	105 ░C	12	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm
TE Connectivity AMP Connectors 794627-4	-40 °C	105 ░C	4	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin-Lead	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm	Tin-Lead
TE Connectivity AMP Connectors 5-794627-4	-40 °C	105 ░C	24	UL94 V-0	Brass	All	Male Pin	General Purpose	2.54 µm	100 µin	3 mm	0.118 in	Solder Retention	Shrouded - 4 Wall	250 VDC	Solder	Tin	Locking Ramp	Surface Mount, Right Angle	7.37 mm	0.29 in	Square	Nylon, Polyamide (PA)	2	Varies by Wire Gauge	Board to Cable/Wire	2.54 çm	100 çin	Header	Black	0.118 in	3 mm
