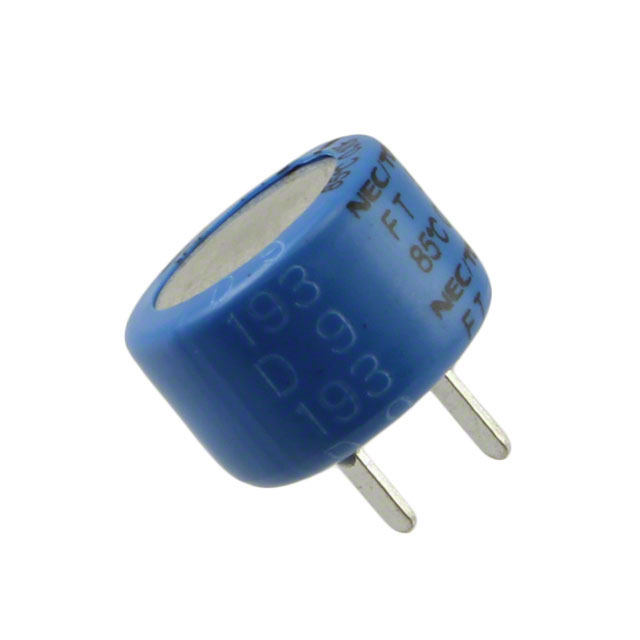

FTW0H104ZF
ActiveSUPERCAPACITOR, EDLC, 0.1 F, 5.5 V, RADIAL LEADED, FT SERIES, +80%, -20%, 5.08 MM
Deep-Dive with AI
Search across all available documentation for this part.
FTW0H104ZF
ActiveSUPERCAPACITOR, EDLC, 0.1 F, 5.5 V, RADIAL LEADED, FT SERIES, +80%, -20%, 5.08 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FTW0H104ZF |
|---|---|
| Capacitance | 0.1 F |
| ESR (Equivalent Series Resistance) | 16 Ohm |
| Height - Seated (Max) [Max] [z] | 0.335 in |
| Height - Seated (Max) [Max] [z] | 8.5 mm |
| Lead Spacing | 5.08 mm |
| Lead Spacing | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.453 " |
| Size / Dimension [diameter] | 11.5 mm |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.08 | |
| 10 | $ 2.36 | |||
| 50 | $ 2.17 | |||
| 100 | $ 1.80 | |||
| 500 | $ 1.45 | |||
| 1000 | $ 1.27 | |||
| 3000 | $ 1.22 | |||
| 5000 | $ 1.18 | |||
Description
General part information
FTW0H Series
FT Series Supercapacitors, also known as Electric Double Layer Capacitors (EDLCs), are intended for high energy storage applications. The FT series supercapacitor has characteristics ranging from traditional capacitors and batteries. As a result, a supercapacitor can be used like a secondary battery when applied in a DC circuit. This device is best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
