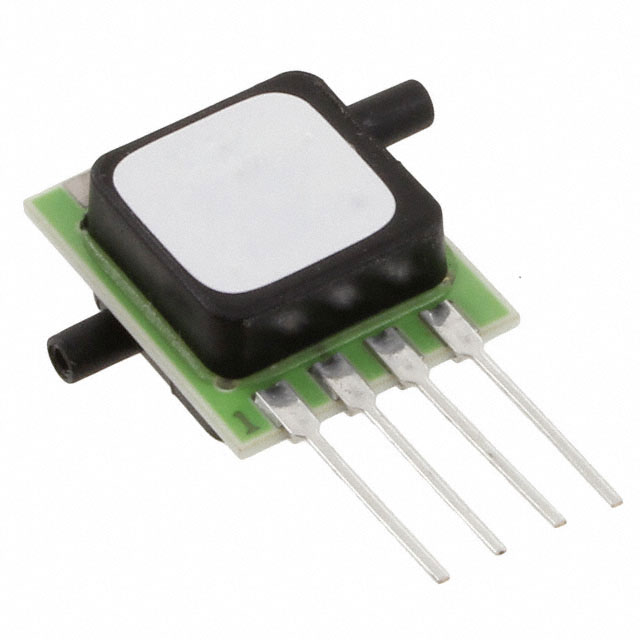

DLVR-L01D-E2NS-C-NI3F

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSID 0.08" 14BIT 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSID 0.08" 14BIT 4SIP

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage - Supply	Package / Case	Features	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Port Size [x]	Port Size [x]	Operating Pressure	Operating Pressure	Port Style	Output Type	Output	Mounting Type	Maximum Pressure	Maximum Pressure	Applications	Accuracy	Pressure Type
Amphenol All Sensors Corporation DLVR-L01D-E1NJ-C-NI3F	SMD (SMT) Tab	3.3 V	8-SMD Module	Temperature Compensated	8-SMD	-25 °C	85 °C	2.03 mm	0.08 "	0.04 PSI	0.25 kPa	Barbless	I2C	14 b	Surface Mount	3.61 PSI	24.92 kPa	Board Mount	1 %	Differential
Amphenol All Sensors Corporation DLVR-L01D-E1NJ-C-NI5F	SMD (SMT) Tab		8-SMD Module	Temperature Compensated	8-SMD	-25 °C	85 °C	2.03 mm	0.08 "	0.04 PSI	0.25 kPa	Barbless	I2C	14 b	Surface Mount	3.61 PSI	24.92 kPa	Board Mount	1 %	Differential
Amphenol All Sensors Corporation DLVR-L01D-E2NS-C-NI3F	PC Pin	3.3 V	4-SIP Module	Temperature Compensated	4-SIP	-25 °C	85 °C	2.03 mm	0.08 "	0.04 PSI	0.25 kPa	Barbless	I2C	14 b	Through Hole	3.61 PSI	24.92 kPa	Board Mount	1 %	Differential
Amphenol All Sensors Corporation DLVR-L01D-E2NJ-C-NI3F	SMD (SMT) Tab	3.3 V	8-SMD Module	Temperature Compensated	8-SMD	-25 °C	85 °C	2.03 mm	0.08 "	0.04 PSI	0.25 kPa	Barbless	I2C	14 b	Surface Mount	3.61 PSI	24.92 kPa	Board Mount	1 %	Differential

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 42.98

General part information

Pressure Sensor ±0.04PSI (±0.25kPa) Differential Male - 0.08" (2.03mm) Tube, Dual 14 b 4-SIP Module

Technical documentation and resources

No documents available
