796859-5
ActiveTE Connectivity AMP Connectors

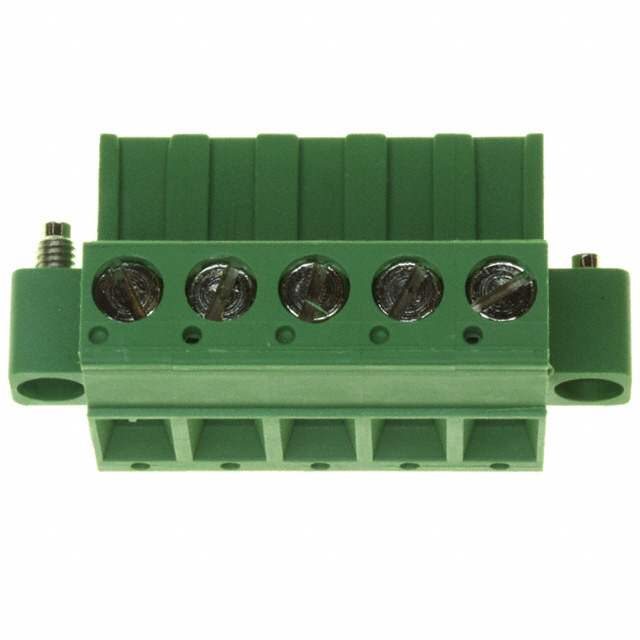

TERM BLOCK PLUG 5POS STR 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796859-5
ActiveTE Connectivity AMP Connectors
TERM BLOCK PLUG 5POS STR 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796859-5 | 796859 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Features | Mating Flange | Mating Flange |
| Insulation Height | 0.61 in | 0.61 in |
| Insulation Height | 15.49 mm | 15.49 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | - | 4 - 11 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 5 | 3 - 17 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm˛ | - | 3 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.05 mm˛ |
| Wire Gauge or Range - mm² [Max] | 3 mm² | 3 mm² |
| Wire Gauge or Range - mm² [Min] | 0.05 mm² | 0.05 mm² |
| Wire Strip Length [Max] | 7.5 mm | 7.5 mm |
| Wire Strip Length [Min] | 6 mm | 6 mm |
796859 Series
TERM BLOCK PLUG 3POS STR 5.08MM
| Part | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Material Flammability Rating | Voltage - UL | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type | Insulation Height | Insulation Height | Screw Size | Torque - Screw | Torque - Screw | Mounting Type | Wire Strip Length [Max] | Wire Strip Length [Min] | Contact Material | Color | Termination Style | Contact Mating Finish | Pitch [x] | Pitch [x] | Features | Number of Positions | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796859-3 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 3 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | |||
TE Connectivity AMP Connectors 1-796859-7 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 17 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | |||
TE Connectivity AMP Connectors 796859-9 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 9 | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 9 | 3 mm˛ | 0.05 mm˛ | ||
TE Connectivity AMP Connectors 1-796859-1 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 11 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 11 | ||
TE Connectivity AMP Connectors 796859-8 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 8 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 8 | ||
TE Connectivity AMP Connectors 796859-4 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 4 | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 4 | 3 mm˛ | 0.05 mm˛ | ||
TE Connectivity AMP Connectors 796859-7 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 7 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 7 | ||
TE Connectivity AMP Connectors 1-796859-0 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 10 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange | 10 | ||
TE Connectivity AMP Connectors 796859-5 | 30 AWG | 12 AWG | UL94 V-0 | 300 V | 1 | -40 °C | 110 °C | 5 | 0.05 mm² | 3 mm² | Plug, Female Sockets | 0.61 in | 15.49 mm | M3 | 0.79 Nm | 7 Lb-In | Free Hanging (In-Line) | 7.5 mm | 6 mm | Phosphor Bronze | Green | Screw - Rising Cage Clamp | Tin | 0.2 in | 5.08 mm | Mating Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.48 | |
| 10 | $ 3.10 | |||
| 150 | $ 2.75 | |||
| 1050 | $ 2.26 | |||
| 5100 | $ 1.96 | |||
Description
General part information
796859 Series
5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
