796859-8

Active

TE Connectivity AMP Connectors

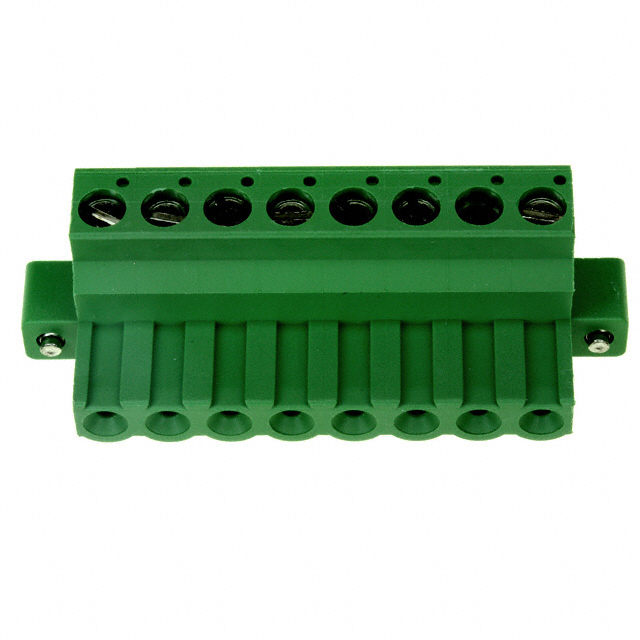

TERM BLOCK PLUG 8POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796859-8

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 8POS STR 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.13
		10	$ 9.22
		25	$ 8.56
		50	$ 8.09
		100	$ 7.65
		250	$ 7.46

Description

General part information

796859 Series

8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796859-8	796859 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Mating Flange	Mating Flange
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	4 - 11
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	8	3 - 17
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796859 Series

TERM BLOCK PLUG 3POS STR 5.08MM

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material Flammability Rating	Voltage - UL	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Insulation Height	Insulation Height	Screw Size	Torque - Screw	Torque - Screw	Mounting Type	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Color	Termination Style	Contact Mating Finish	Pitch [x]	Pitch [x]	Features	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 796859-3	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	3	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange
TE Connectivity AMP Connectors 1-796859-7	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	17	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange
TE Connectivity AMP Connectors 796859-9	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	9			Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	9	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-796859-1	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	11	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	11
TE Connectivity AMP Connectors 796859-8	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	8	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	8
TE Connectivity AMP Connectors 796859-4	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	4			Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	4	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796859-7	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	7	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	7
TE Connectivity AMP Connectors 1-796859-0	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	10	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange	10
TE Connectivity AMP Connectors 796859-5	30 AWG	12 AWG	UL94 V-0	300 V	1	-40 °C	110 °C	5	0.05 mm²	3 mm²	Plug, Female Sockets	0.61 in	15.49 mm	M3	0.79 Nm	7 Lb-In	Free Hanging (In-Line)	7.5 mm	6 mm	Phosphor Bronze	Green	Screw - Rising Cage Clamp	Tin	0.2 in	5.08 mm	Mating Flange
