5153-1"X36YD

Active

3M (TC)

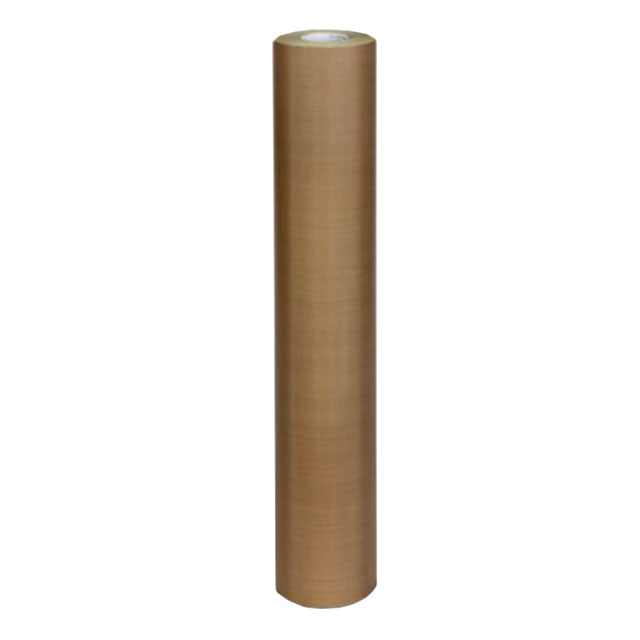

TAPE GLASS CLOTH BROWN 1"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE GLASS CLOTH BROWN 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	5153-1"X36YD

Adhesive	Silicone Thermosetting
Color	Brown
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Glass Cloth
Temperature Range [Max]	400 °F
Temperature Range [Max]	204 °C
Temperature Range [Min]	-100 °F
Temperature Range [Min]	-73 °C
Thickness	8 mils
Thickness	0.008 in
Thickness	0.203 mm
Thickness - Adhesive	2.2 mils
Thickness - Adhesive	0.056 mm
Thickness - Adhesive	0.0022 "
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

Part	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Thickness	Thickness	Thickness	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Shelf Life Start	Usage	Adhesive	Color	Shelf Life
3M (TC) 5153-1"X36YD	Glass Cloth	2.2 mils	0.056 mm	0.0022 "	25.4 mm	1 in	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm	36 yd	32.9 m	108 ft	8 mils	0.008 in	0.203 mm	-100 °F	400 °F	-73 °C	204 °C	Date of Manufacture	General Purpose	Silicone Thermosetting	Brown	24 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Glass Cloth Tape Silicone Thermosetting Adhesive Brown 1.00" (25.40mm) X 108' (32.9m) 36 yds
