SW4 NA008

Active

ALPHA WIRE

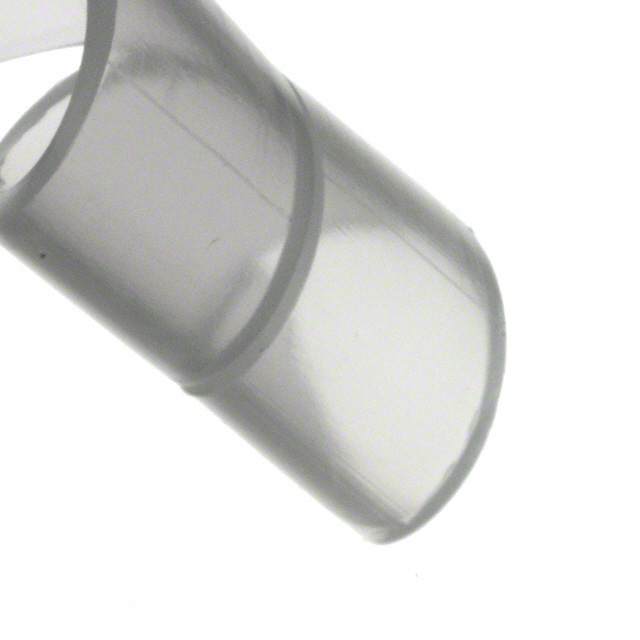

SPIRAL WRAP 0.376" X 25' NAT

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.376" X 25' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	SW4 NA008

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Non-Expanded [diameter]	0.376 in
Diameter - Inside, Non-Expanded [diameter]	9.55 mm
Diameter - Outside, Non-Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	12.7 mm
Features	Solvent Resistant
Length [x]	25 ft
Length [x]	7.62 m
Material	Polyethylene (PE), Halogen Free
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.57 mm
Wall Thickness	0.062 in

SPIRAL WRAP 0.376" X 25' NAT

Part	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Wall Thickness	Wall Thickness	Type Attributes	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Abrasion Protection	Features	Length [x]	Length [x]
ALPHA WIRE SW4 NA008	Polyethylene (PE), Halogen Free	Natural	-60 °C	88 °C	0.376 in	9.55 mm	1.57 mm	0.062 in	Harness	Spiral Wrap	0.5 in	12.7 mm	Abrasion Resistant	Solvent Resistant	25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.500" (12.70mm) X 25.00' (7.62m) Natural

Technical documentation and resources
