210-99-964-41-001000

Active

Mill-Max Manufacturing Corp.

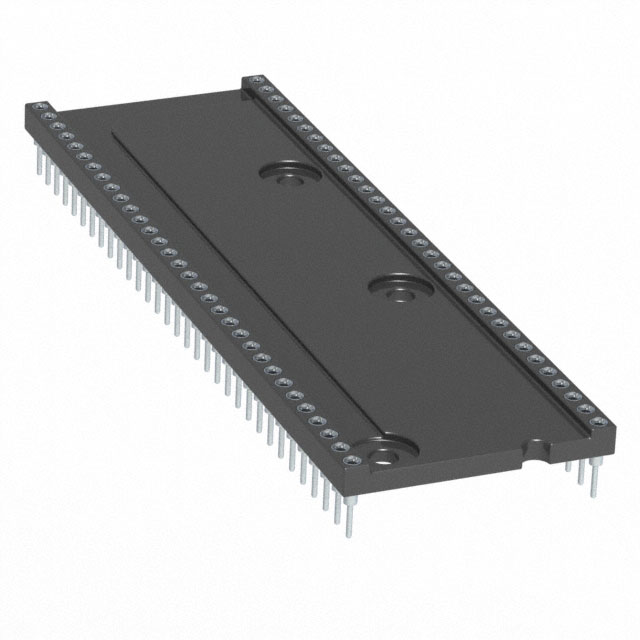

CONN IC DIP SOCKET 64POS TINLEAD

Deep-Dive with AI

Search across all available documentation for this part.

210-99-964-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 64POS TINLEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	210-99-964-41-001000

Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	64
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	22.86 mm
Type	DIP
Type	0.9 in

210-99 Series

Part	Number of Positions or Pins (Grid)	Contact Material - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Mounting Type	Pitch - Post	Pitch - Post	Current Rating (Amps)	Contact Finish - Post	Termination Post Length	Termination Post Length	Type	Type	Type
Mill-Max Manufacturing Corp. 210-99-628-41-001000	28	Brass Alloy	Closed Frame	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	2.54 çm	100 çin	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Beryllium Copper	Through Hole	2.54 mm	0.1 in	3 A	Tin-Lead	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 210-99-320-41-001000	20	Brass Alloy	Closed Frame	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	2.54 çm	100 çin	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Beryllium Copper	Through Hole	2.54 mm	0.1 in	3 A	Tin-Lead	3.18 mm	0.125 in	DIP	0.3 "	7.62 mm
Mill-Max Manufacturing Corp. 210-99-964-41-001000	64	Brass Alloy	Closed Frame	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	2.54 çm	100 çin	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Beryllium Copper	Through Hole	2.54 mm	0.1 in	3 A	Tin-Lead	3.18 mm	0.125 in	DIP	0.9 in	22.86 mm
Mill-Max Manufacturing Corp. 210-99-624-41-001000	24	Brass Alloy	Closed Frame	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	2.54 çm	100 çin	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Beryllium Copper	Through Hole	2.54 mm	0.1 in	3 A	Tin-Lead	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 210-99-324-41-001000	24	Brass Alloy	Closed Frame	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	2.54 çm	100 çin	Solder	200 µin	5.08 µm	0.1 in	2.54 mm	Beryllium Copper	Through Hole	2.54 mm	0.1 in	3 A	Tin-Lead	3.18 mm	0.125 in	DIP	0.3 "	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	54	$ 16.15

Description

General part information

210-99 Series

64 (2 x 32) Pos DIP, 0.9" (22.86mm) Row Spacing Socket Tin-Lead Through Hole
