7918A 0101000

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	7918A 0101000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, Rip Cord, UV Resistant
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Usage	Network
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Insulation	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Usage	Conductor Strand	Wire Gauge	Conductor Material	Jacket Color	Features
Belden Inc. 7918A 0101000	Poly-Vinyl Chloride (PVC)	-40 °C	75 ░C	Multi-Pair Cat5e	Polyolefin (PO)	1000 ft	304.8 m	5.84 mm	0.23 in	8	Network	Solid	24 AWG	Copper Bare	Black	Oil Resistant Rip Cord UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

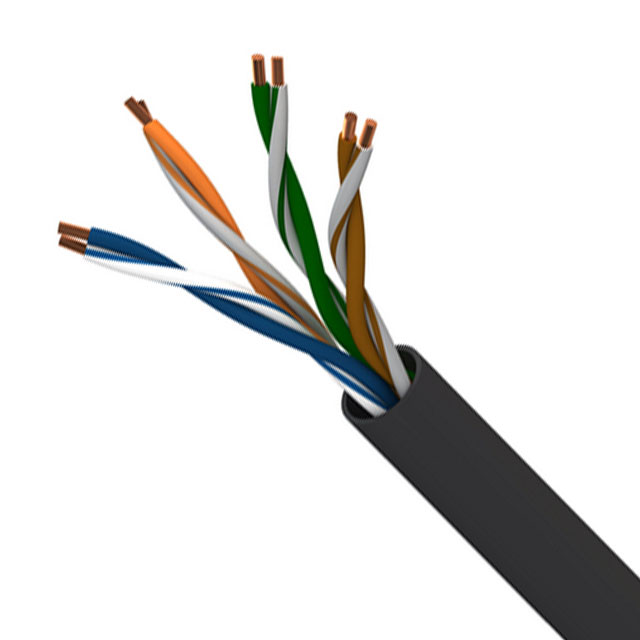

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 1000.0' (304.8m)

Technical documentation and resources
