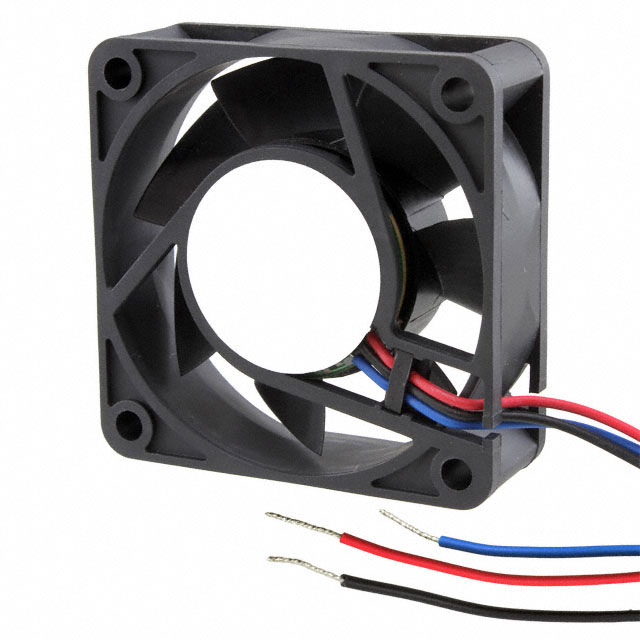

AFB0624VHD-F00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Datasheet +2

AFB0624VHD-F00

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0624VHD-F00

Air Flow	19.8 CFM
Air Flow	0.554 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.16 W
RPM	4800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.275 in H2O
Static Pressure	68.6 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Weight	62.14 g
Weight	0.137 lb
Width [y]	20 mm

AFB0624 Series

Part	Voltage - Rated	Fan Type	Static Pressure	Static Pressure	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Material - Frame	Bearing Type	Approval Agency	Material - Blade	Lifetime @ Temp.	Noise	RPM	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Termination	Air Flow	Air Flow	Features	Width [x]	Ingress Protection
Delta Electronics AFB0624M-A	24 VDC	Tubeaxial	38.6 Pa	0.155 in H2O	80 g	0.176 lb	70 °C	70 °C	-10 °C	-10 °C	1.68 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	31 dB(A)	3600 RPM	60 mm	60 mm	70 mA	27.6 VDC	14 VDC	25.4 mm	2 Wire Leads	19.8 CFM	0.554 mł/min
Delta Electronics AFB0624MD	24 VDC	Tubeaxial			62.14 g	0.137 lb						Plastic	Ball	CE CSA UL VDE	Plastic		26 dB	3600 RPM	60 mm	60 mm	40 mA	27.6 VDC	14 VDC	20 mm	2 Wire Leads	14.8 CFM	0.414 mł/min
Delta Electronics AFB0624VHD-R00	24 VDC	Tubeaxial	68.6 Pa	0.275 in H2O	62.14 g	0.137 lb	70 °C	70 °C	-10 °C	-10 °C	2.16 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	33 dB(A)	4800 RPM	60 mm	60 mm	0.09 A	27.6 VDC	14 VDC	20 mm	3 Wire Leads	19.8 CFM	0.554 mł/min	Locked Rotor Sensor
Delta Electronics AFB0624HD	24 VDC	Tubeaxial	47.1 Pa	0.189 in H2O	62.14 g	0.137 lb	70 °C	70 °C	-10 °C	-10 °C	1.2 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	28 dB	4000 RPM	60 mm	60 mm	50 mA	27.6 VDC	14 VDC	20 mm	2 Wire Leads	16.6 CFM	0.465 mł/min
Delta Electronics AFB0624HHB	24 VDC	Tubeaxial	48.6 Pa	0.195 in H2O	44.45 g	0.098 lb	70 °C	70 °C	-10 °C	-10 °C	2.4 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	35 dB	4500 RPM	60 mm	60 mm	100 mA	27.6 VDC	14 VDC		2 Wire Leads	17.3 CFM	0.484 mł/min		15 mm
Delta Electronics AFB0624VH-A	24 VDC	Tubeaxial	85.9 Pa	0.345 in H2O	80 g	0.176 lb	70 °C	70 °C	-10 °C	-10 °C	3.36 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	42.5 dB(A)	5500 RPM	60 mm	60 mm	140 mA	27.6 VDC	14 VDC	25.4 mm	2 Wire Leads	30.5 CFM	0.854 m³/min
Delta Electronics AFB0624EHDC9	24 VDC	Tubeaxial	135.5 Pa	0.544 in H2O	80 g	0.176 lb	70 °C	70 °C	-10 °C	-10 °C		Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	46.5 dB	6800 RPM	60 mm	60 mm	0.24 A	27.6 VDC	14 VDC	25.4 mm	3 Wire Leads	38.4 CFM	1.08 m³/min	Locked Rotor Sensor		IP55 - Dust Protected Water Resistant
Delta Electronics AFB0624VH-AR00	24 VDC	Tubeaxial	85.9 Pa	0.345 in H2O	80 g	0.176 lb	70 °C	70 °C	-10 °C	-10 °C	3.36 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	42.5 dB(A)	5500 RPM	60 mm	60 mm	140 mA	27.6 VDC	14 VDC	25.4 mm	3 Wire Leads	30.5 CFM	0.854 m³/min	Locked Rotor Sensor
Delta Electronics AFB0624MB	24 VDC	Tubeaxial	29.6 Pa	0.119 in H2O	44.45 g	0.098 lb	70 °C	70 °C	-10 °C	-10 °C	1.44 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	29 dB(A)	3500 RPM	60 mm	60 mm	60 mA	27.6 VDC	14 VDC		2 Wire Leads	13.5 CFM	0.378 m³/min		15 mm
Delta Electronics AFB0624MBAV8	24 VDC	Tubeaxial	29.6 Pa	0.119 in H2O	44.45 g	0.098 lb	70 °C	70 °C	-10 °C	-10 °C	1.44 W	Plastic	Ball	CE CSA UL VDE	Plastic	70000 Hrs	29 dB(A)	3500 RPM	60 mm	60 mm	60 mA	27.6 VDC	14 VDC		3 Wire Leads	13.5 CFM	0.378 m³/min	Locked Rotor Sensor	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 19.8 CFM (0.554m³/min) 3 Wire Leads
