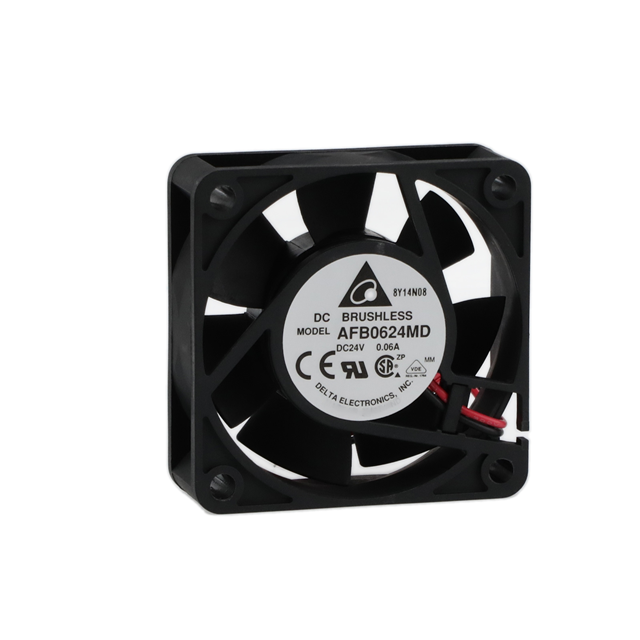

AFB0624MD

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

AFB0624MD

Obsolete

Delta Electronics

FAN AXIAL 60X20MM 24VDC WIRE

Description Specifications Series Pricing CAD Documents

Description

General part information

AFB0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 14.8 CFM (0.414m³/min) 2 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0624MD

Air Flow	14.8 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	40 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	26 dB
Power (Watts)	960 mW
RPM	3600 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.151 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	14 VDC
Weight	0.137 lb
Width	20 mm

AFB0624 Series

Part	Fan Type	Static Pressure	Voltage - Rated	Width	Approval Agency	Power (Watts)	Noise	Bearing Type	RPM	Features	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Weight	Air Flow	Material - Frame	Current Rating	Lifetime	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Ingress Protection Description	Ingress Protection IP Rating
Delta Electronics AFB0624M-A	Tubeaxial	0.155 in H2O	24 VAC	1 in	CE CSA UL VDE	1.68 W	31 dB	Ball	3600 RPM	Locked Rotor Protection	158 °F	14 °F	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.176 lb	19.8 CFM	Plastic	70 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624HHB-F00	Tubeaxial	0.195 in H2O	24 VAC	15 mm	CE CSA UL VDE	2.4 W	35 dB	Ball	4500 RPM	Locked Rotor Protection Speed Sensor (Tach)	158 °F	14 °F	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.098 lb	17.3 CFM	Plastic	100 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624MD	Tubeaxial	0.151 in H2O	24 VAC	20 mm	CE CSA UL VDE	960 mW	26 dB	Ball	3600 RPM	Locked Rotor Protection			60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.137 lb	14.8 CFM	Plastic	40 mA		27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624VHD-R00	Tubeaxial	0.275 in H2O	24 VAC	20 mm	CE CSA UL VDE	2.16 W	33 dB	Ball	4800 RPM	Locked Rotor Sensor	158 °F	14 °F	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.137 lb	19.8 CFM	Plastic	0.09 A	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624HD	Tubeaxial	0.189 in H2O	24 VAC	20 mm	CE CSA UL VDE	1.2 W	28 dB	Ball	4000 RPM	Locked Rotor Protection	158 °F	14 °F	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.137 lb	16.6 CFM	Plastic	50 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624HHB	Tubeaxial	0.195 in H2O	24 VAC	15 mm	CE CSA UL VDE	2.4 W	35 dB	Ball	4500 RPM	Locked Rotor Protection	158 °F	14 °F	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.098 lb	17.3 CFM	Plastic	100 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624LB	Tubeaxial	0.087 in H2O	24 VAC	15 mm	CE CSA UL VDE	960 mW	24 dB	Ball	3000 RPM	Locked Rotor Protection	158 °F	14 °F	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.098 lb	11.6 CFM	Plastic	40 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624VH-A	Tubeaxial	0.345 in H2O	24 VAC	1 in	CE CSA UL VDE	3.36 W	42.5 dB	Ball	5500 RPM	Locked Rotor Protection	158 °F	14 °F	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	0.176 lb	30.5 CFM	Plastic	140 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic
Delta Electronics AFB0624EHDC9	Tubeaxial	0.544 in H2O	24 VAC	1 in	CE CSA UL VDE	5.76 W	46.5 dB	Ball	6800 RPM	Locked Rotor Sensor	158 °F	14 °F	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.176 lb	38.4 CFM	Plastic	0.24 A	70000 Hrs	27.6 VDC	14 VDC	Plastic	Dust Protected Water Resistant	IP55
Delta Electronics AFB0624HH-AR00	Tubeaxial	0.294 in H2O	24 VAC	1 in	CE CSA UL VDE	2.64 W	40 dB	Ball	5000 RPM	Locked Rotor Sensor	158 °F	14 °F	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	0.176 lb	27.6 CFM	Plastic	110 mA	70000 Hrs	27.6 VDC	14 VDC	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AFB0624MD | Datasheet
