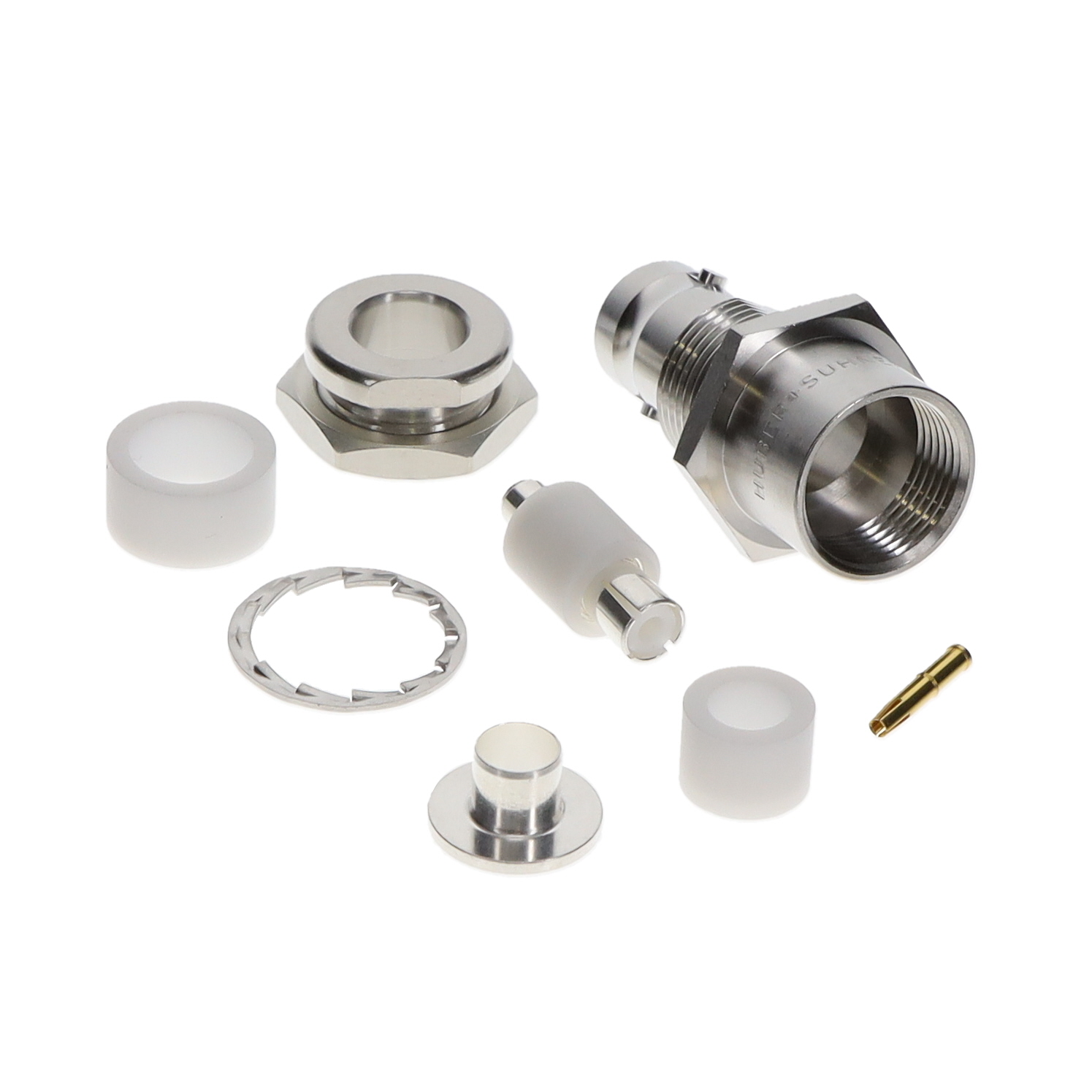

Specification	24_BNT-50-3-1/103_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNT
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Bayonet Lock
Frequency - Max	3 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-50 °C
Shield Termination	Clamp

24_BNT-50 Series

Part	Mounting Feature	Center Contact Material	Housing Color	Contact Termination	Frequency - Max	Number of Ports	Connector Type	Mounting Type	Fastening Type	Connector Style	Shield Termination	Impedance	Body Material	Dielectric Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish
Huber+Suhner, Inc. 24_BNT-50-2-1/103_NE	Bulkhead Front Side Nut	Beryllium Copper	Silver	Solder	3 GHz	1	Female Socket Jack	Panel Mount	Bayonet Lock	BNT	Clamp	50 Ohm	Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	125 °C	-50 °C	Silver
Huber+Suhner, Inc. 24_BNT-50-3-1/103_NE	Bulkhead Front Side Nut	Beryllium Copper	Silver	Solder	3 GHz	1	Female Socket Jack	Panel Mount	Bayonet Lock	BNT	Clamp	50 Ohm	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	125 °C	-50 °C	White Bronze
