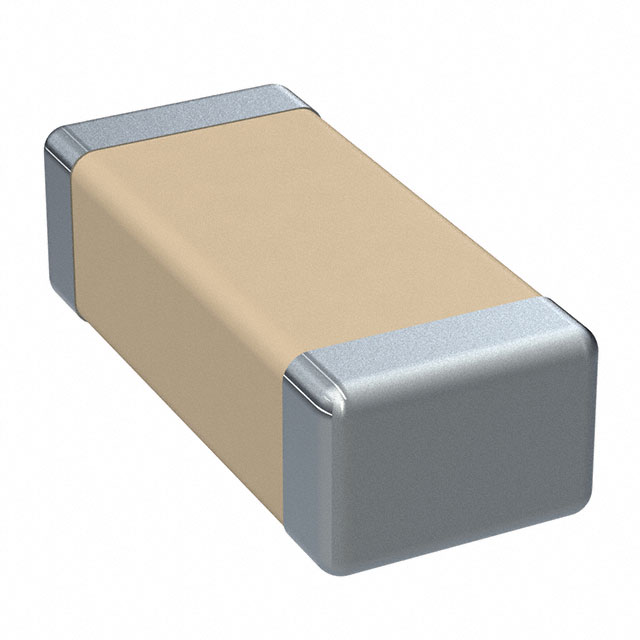

C1206T105K3RCL7800

Active

KEMET

CAP CER 1UF 25V X7R 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC1206T105K3RCLTU Datasheet

C1206T105K3RCL7800

Active

KEMET

CAP CER 1UF 25V X7R 1206

Deep-Dive with AI

DocumentsC1206T105K3RCLTU Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1206T105K3RCL7800

Applications	Bypass, Decoupling, High Reliability
Capacitance	1 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Ratings	COTS
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	X7R
Thickness (Max) [Max] [custom]	0.043 "
Thickness (Max) [Max] [custom]	1.1 mm
Tolerance	10 %
Voltage - Rated	25 VDC

C1206T Series

Part	Capacitance	Voltage - Rated	Mounting Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Ratings	Package / Case	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max)	Voltage - Rated [custom]
KEMET C1206T105K3RCL7800	1 µF	25 VDC	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm	0.043 "	1.1 mm	COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability
KEMET C1206T104J1RAL7800	100000 pF	100 V	MLCC Surface Mount	X7R	-55 °C	125 °C	5 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability	0.035 in	0.88 mm
KEMET C1206T225K5RAC7800	2.2 µF	50 VDC	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability	0.071 "		1.8 mm
KEMET C1206T105K3RAL7800	1 µF	25 VDC	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability
KEMET C1206T564K3RAL7800	0.56 µF	25 VDC	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm	0.043 "	1.1 mm	COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability
KEMET C1206T104K5RAC7800	100000 pF	50 VDC	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability	0.035 in	0.88 mm
KEMET C1206T225K4RAL7800	2.2 µF		MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm	0.043 "	1.1 mm	COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability				16 V
KEMET C1206T103J1RAL7800	10000 pF	100 V	MLCC Surface Mount	X7R	-55 °C	125 °C	5 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability	0.035 in	0.88 mm
KEMET C1206T106K8RCL7800	10 µF	10 V	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm			COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability	0.071 "		1.8 mm
KEMET C1206T225K8RAL7800	2.2 µF	10 V	MLCC Surface Mount	X7R	-55 °C	125 °C	10 %	0.063 in	1.6 mm	0.126 "	3.2 mm	0.043 "	1.1 mm	COTS	1206 (3216 Metric)	Bypass Decoupling High Reliability

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.92

Description

General part information

C1206T Series

1 µF ±10% 25V Ceramic Capacitor X7R 1206 (3216 Metric)
