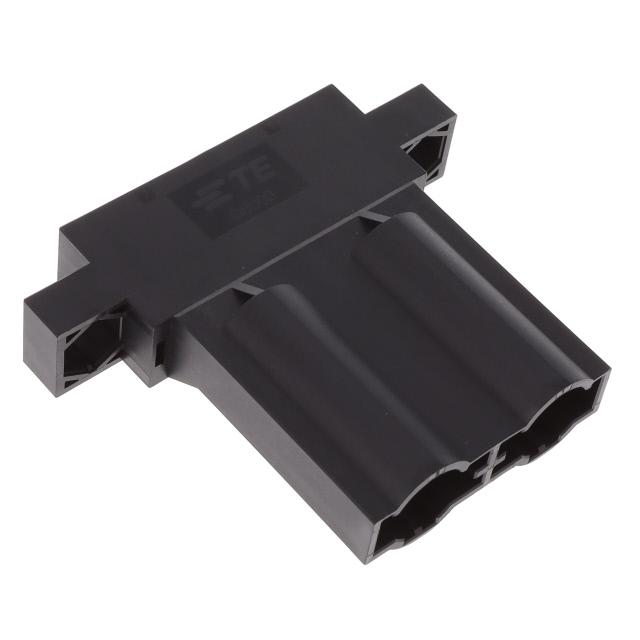

1-2352216-2
ActiveTE Connectivity Raychem Cable Protection
DYNAMIC D8000 TAB HSG 2P
Deep-Dive with AI
Search across all available documentation for this part.
1-2352216-2
ActiveTE Connectivity Raychem Cable Protection
DYNAMIC D8000 TAB HSG 2P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2352216-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Features | Mounting Flange |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.961 in |
| Pitch [x] | 24.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.44 | |
| 15 | $ 3.96 | |||
| 30 | $ 3.94 | |||
| 90 | $ 3.90 | |||
| 240 | $ 3.51 | |||
| 450 | $ 3.49 | |||
| 945 | $ 3.23 | |||
| 2400 | $ 2.89 | |||
Description
General part information
2352216 Series
2 Position, Housing for Male Terminals, Housing, Crimp, Wire-to-Wire, 24.4 mm [.961 in] Centerline, 1 Row, Wire & Cable, Dynamic 8000 Series
