69-13-42349-T411
ActiveParker Chomerics

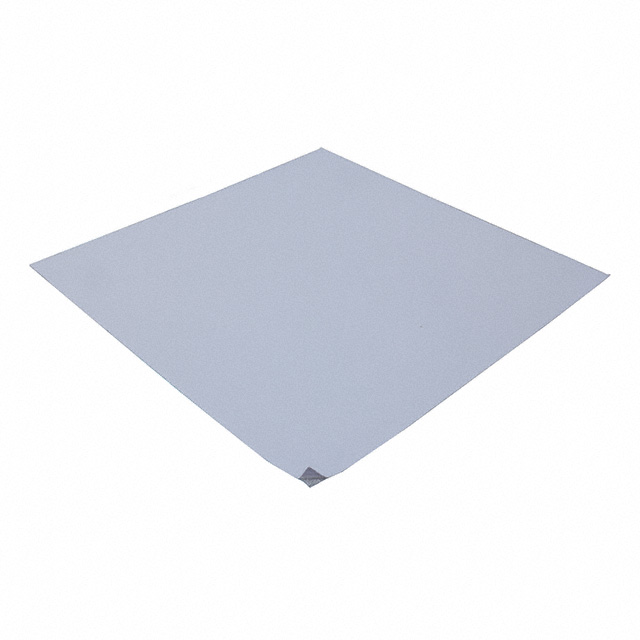

THERM TAPE 152.4MMX152.4MM W/ADH
69-13-42349-T411
ActiveParker Chomerics
THERM TAPE 152.4MMX152.4MM W/ADH
Description
General part information
69-13-42349 Series
Thermal Pad Clear, Metallic 152.40mm x 152.40mm Square Adhesive - Both Sides
Technical Specifications
Parameters and characteristics for this part
| Specification | 69-13-42349-T411 |
|---|---|
| Adhesive | Adhesive - Both Sides |
| Backing | Aluminum Mesh |
| Carrier | Aluminum Mesh |
| Color | Clear, Metallic |
| Outline Length | 152.4 mm |
| Outline Width | 152.4 mm |
| Shape | Square |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Shipment |
| Thermal Conductivity | 0.5 W/m-K |
| Thickness | 0.01 in |
| Type | Sheet, Conductive Tape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
