AEA114N00000201000

Active

TE Intercontec

CONN RCPT HSG MALE 12POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 12POS PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AEA114N00000201000	AEA11 Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Fastening Type	Push-Twist	Push-Twist
Housing Color	Silver	Silver
Includes	1 Connector, 1 O-Ring	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	12
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	Keyed	Keyed
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	M23-12	M23-12, M23-17
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

CONN RCPT HSG MALE 12POS PNL MT

Part	Housing Color	Connector Type	Ingress Protection	Shell Material	Includes	Insert Material	Shielding	Material Flammability Rating	Note	Mounting Feature	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Contact Shape	Type	Shell Finish
TE Intercontec AEA114N00000201000	Silver	Receptacle Housing	IP66/IP67	Zinc Die Cast	1 Connector, 1 O-Ring	Polybutylene Terephthalate (PBT)	Unshielded	UL94 V-0	Contacts Not Included	Flange	12	Push-Twist	-20 C	130 °C	Keyed	M23-12	Circular	For Male Pins	Nickel
TE Intercontec AEA110N00000201000	Silver	Receptacle Housing	IP66/IP67	Zinc Die Cast	1 Connector, 1 O-Ring	Polybutylene Terephthalate (PBT)	Unshielded	UL94 V-0	Contacts Not Included	Flange	12	Push-Twist	-20 C	130 °C	Keyed	M23-12	Circular	For Male Pins	Nickel
TE Intercontec AEA113N00000201000	Silver	Receptacle Housing	IP66/IP67	Zinc Die Cast	1 Connector, 1 O-Ring	Polybutylene Terephthalate (PBT)	Unshielded	UL94 V-0	Contacts Not Included	Flange		Push-Twist	-20 C	130 °C	Keyed	M23-17	Circular	For Male Pins	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

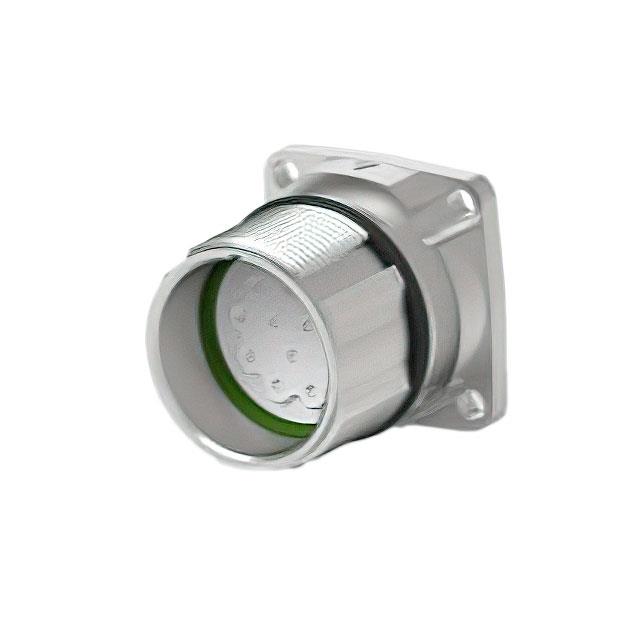

12 Position Circular Connector Receptacle Housing Panel Mount
