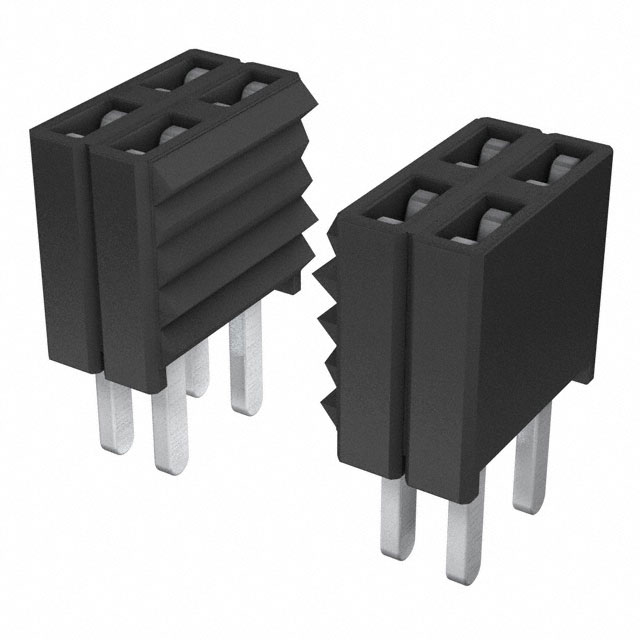

SLM-112-01-S-D - SLM-1xx-01-S-D

SLM-112-01-S-D

Active
Samtec Inc.

SOCKET, 1.27 X 2.54MM, LOW, 2X12WAY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSLM DatasheetDatasheet+1
SLM-112-01-S-D - SLM-1xx-01-S-D

SLM-112-01-S-D

Active
Samtec Inc.

SOCKET, 1.27 X 2.54MM, LOW, 2X12WAY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSLM DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSLM-112-01-S-D
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Length - Post2.92 mm
Contact Length - Post0.115 in
Contact MaterialPhosphor Bronze
Contact ShapeRectangular
Contact TypeForked
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height4.57 mm
Insulation Height0.18 "
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions24
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.49
NewarkEach 1$ 5.09
10$ 4.63
25$ 4.24
50$ 3.91
100$ 3.65
250$ 3.40
500$ 3.18
1000$ 3.00

Description

General part information

SLM-112 Series

24 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
