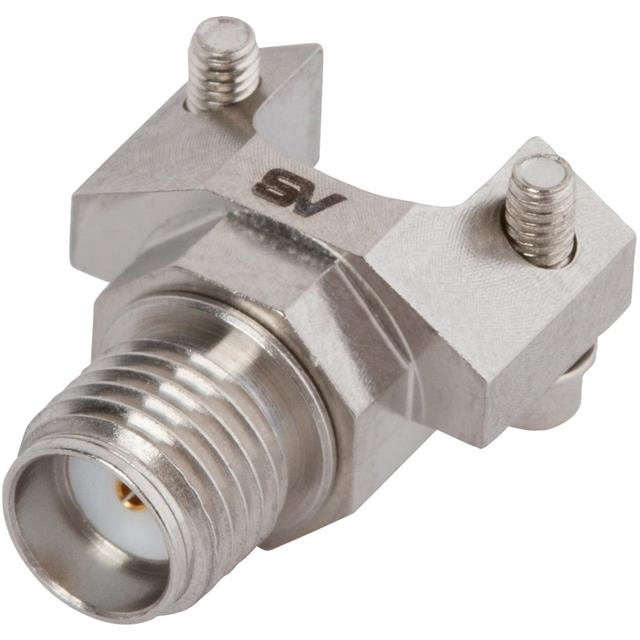

SF2921-61450

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF2921-61450

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM EDGE MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF2921-61450

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	2 Screws, 1 Connector
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

SF2921 Series

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Termination	Impedance	Center Contact Plating	Connector Type	Number of Ports	Connector Style	Center Contact Material	Dielectric Material	Mounting Type	Frequency - Max [Max]	Body Material	Shield Termination	Mating Cycles	Includes	Features	Insertion Loss
Amphenol SV Microwave SF2921-61356	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61356-2S	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61560	Silver	-65 ░C	165 °C		Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware	0.154 dB
Amphenol SV Microwave SF2921-61345	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61506-1S	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	18 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61507-1S	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61450	Silver	-65 ░C	165 °C		Compression	50 Ohms	Gold	Female Socket Jack		SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	26.5 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware
Amphenol SV Microwave SF2921-61507	Silver	-65 ░C	165 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper		Surface Mount	26.5 GHz	Stainless Steel	Screw	500
Amphenol SV Microwave SF2921-61345-2S	Silver	-55 °C	150 °C	Flange	Compression	50 Ohms	Gold	Female Socket Jack	1	SMA	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Surface Mount	27 GHz	Stainless Steel	Screw	500	1 Connector 2 Screws	Mounting Hardware

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.30

Description

General part information

SF2921 Series

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression

Documents

Technical documentation and resources
