PDS4102-PM300N

Active

LATTICE SEMICONDUCTOR

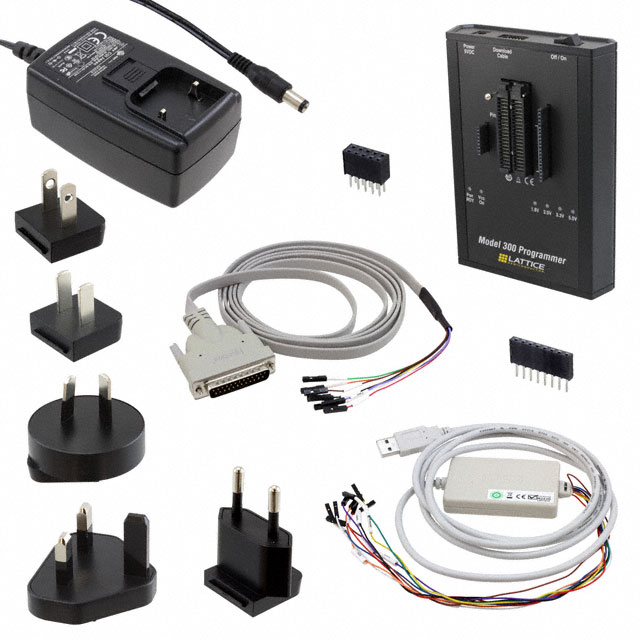

ISP ENGINEERING KIT FOR PC PLATFORM (MODEL 300), ISPDOWNLOAD CABLE, A/C ADAPTER - ROHS COMPLIANT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

ISP ENGINEERING KIT FOR PC PLATFORM (MODEL 300), ISPDOWNLOAD CABLE, A/C ADAPTER - ROHS COMPLIANT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PDS4102-PM300N

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	Lattice
Type	Programmer (Universal Out-of-Circuit)

Part	Module/Board Type	For Use With/Related Products	Utilized IC / Part	Contents	Type
LATTICE SEMICONDUCTOR PDS4102-T176/2128V	Socket Module - TQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-T100/GX80	Socket Module - TQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-B492/8840V	Socket Module - BGA	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-T48	Socket Module - TQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-M240	Socket Module - MQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-B432/8840	Socket Module - BGA		pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-T100/1024	Socket Module - TQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102N-28P2SAB	Converter Board	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-T128/2096V	Socket Module - TQFP	pDS4102-PM300N Model 300 Desktop Programmer
LATTICE SEMICONDUCTOR PDS4102-PM300N		Lattice		Board(s) Cable(s) Power Supply	Programmer (Universal Out-of-Circuit)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 517.20
Newark	Each	1	$ 582.66

General part information

Lattice - Programmer (Universal Out-of-Circuit)
