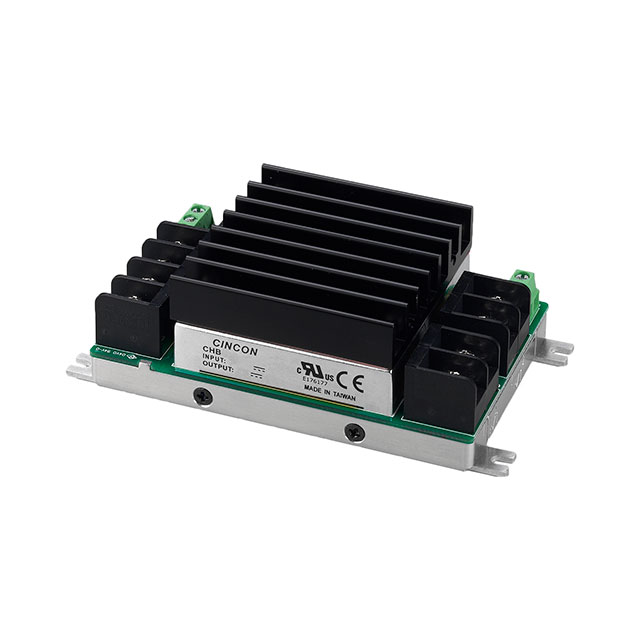

CHB100W-48S05-CM

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 5V 100W

Deep-Dive with AI

Search across all available documentation for this part.

CHB100W-48S05-CM

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 5V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHB100W-48S05-CM

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	20 A
Efficiency	86 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	100 W
Size / Dimension [x]	101.2 mm
Size / Dimension [x]	3.98 in
Size / Dimension [y]	2.54 in
Size / Dimension [y]	64.6 mm
Size / Dimension [z]	26.2 mm
Size / Dimension [z]	1.03 in
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

CHB100W Series

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Type	Number of Outputs	Efficiency	Applications	Voltage - Isolation	Features	Supplier Device Package	Package / Case	Control Features	Standard Number	DC Voltage - Input (Max) [Max]	Input Type	DC Voltage - Input (Min) [Min]
Cincon Electronics Co. LTD CHB100W-48S05-CM	100 W	-40 °C	100 °C	18 V	20 A	5 V	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in	75 V	CE cURus	Chassis Mount	Enclosed	1	86 %	ITE (Commercial)	1.5 kV
Cincon Electronics Co. LTD CHB100-24S15	101 W	-40 °C	100 °C	18 V	6.7 A	15 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	36 V	CE cURus	Through Hole	Isolated Module	1	88 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active High Enable	60950-1
Cincon Electronics Co. LTD CHB100W-48S24N	100 W	-40 °C	100 °C	18 V	4.17 A	24 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	75 V	CE cURus	Through Hole	Isolated Module	1	89 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active Low Enable	60950-1
Cincon Electronics Co. LTD CHB100-48S15N	101 W	-40 °C	100 °C	36 V	6.7 A	15 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	75 V	CE cURus	Through Hole	Isolated Module	1	89 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active Low Enable	60950-1
Cincon Electronics Co. LTD CHB100W-24S24N	100 W	-40 °C	100 °C	9 V	4.17 A	24 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	36 V	CE cURus	Through Hole	Isolated Module	1	87.5 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active Low Enable	60950-1
Cincon Electronics Co. LTD CHB100W-24S24-DIN	100 W	-40 °C	100 °C		4.17 A	24 V	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in		CE cURus			1	87.5 %	ITE (Commercial)	1.5 kV	Adjustable Output Remote On/Off Remote Sense					36 V	DC	9 V
Cincon Electronics Co. LTD CHB100-24S15N	101 W	-40 °C	100 °C	18 V	6.7 A	15 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	36 V	CE cURus	Through Hole	Isolated Module	1	88 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active Low Enable	60950-1
Cincon Electronics Co. LTD CHB100W-24S05N	100 W	-40 °C	100 °C	9 V	20 A	5 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	36 V	CE cURus	Through Hole	Isolated Module	1	84.5 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active Low Enable	60950-1
Cincon Electronics Co. LTD CHB100W-24S05-DIN	100 W	-40 °C	100 °C		20 A	5 V	26.2 mm	2.54 in	64.6 mm	101.2 mm	3.98 in	1.03 in		CE cURus			1	84.5 %	ITE (Commercial)	1.5 kV	Adjustable Output Remote On/Off Remote Sense					36 V	DC	9 V
Cincon Electronics Co. LTD CHB100W-24S24	100 W	-40 °C	100 °C	9 V	4.17 A	24 V	12.7 mm	2.28 in	57.9 mm	61 mm	2.4 in	0.5 in	36 V	CE cURus	Through Hole	Isolated Module	1	87.5 %	ITE (Commercial)	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	Half Brick	Active High Enable	60950-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.00

Description

General part information

CHB100W Series

Enclosed DC DC Converter 1 Output 5V 20A 75V Input

Documents

Technical documentation and resources

No documents available
