Q-2H0450001036i

Active

Amphenol Custom Cable

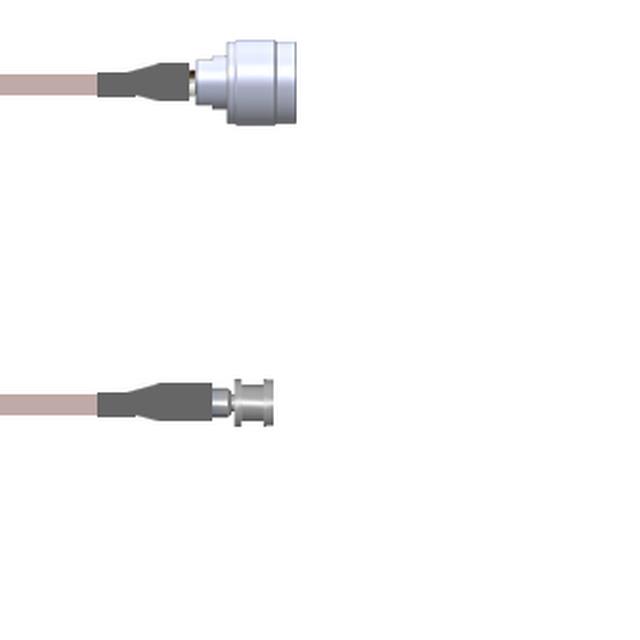

CBL ASSY SMPM-NTYPE JACK-PLG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H0450001036i

Active

Amphenol Custom Cable

CBL ASSY SMPM-NTYPE JACK-PLG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H0450001036i

1st Connector	SMPM Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMPM to N-Type

Q-2H0450 Series

Part	2nd Connector	2nd Contact Gender	Overall Impedance	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	1st Connector	Color	Length [x]	Length [x]	Features	Style	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-2H0450001.25M	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper	9.843 "	250 mm	Shielded	SMPM to N-Type
Amphenol Custom Cable Q-2H0450001036i	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	91.44 cm	36 in
Amphenol Custom Cable Q-2H04500010.5M	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	50 cm	19.69 "
Amphenol Custom Cable Q-2H04500011.5M	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	1.5 m	59.1 in	4.9 ft
Amphenol Custom Cable Q-2H0450001006i	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	152.4 mm	6 in
Amphenol Custom Cable Q-2H0450001009i	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	228.6 mm	9 "
Amphenol Custom Cable Q-2H0450001001M	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	1 m	39.4 in	3.3 ft
Amphenol Custom Cable Q-2H0450001003M	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-2H0450001018i	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper		457.2 mm	Shielded	SMPM to N-Type				457.2 mm
Amphenol Custom Cable Q-2H0450001084i	N-Type Plug	Male	50 Ohms	RG-178	Free Hanging (In-Line)	6000 MHz	Free Hanging (In-Line)	Female	SMPM Jack	Copper			Shielded	SMPM to N-Type	2.1 m	84 in	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.91
		25	$ 72.22
		50	$ 71.54
		100	$ 70.86
		250	$ 70.18

Description

General part information

Q-2H0450 Series

Cable Assembly Coaxial SMPM to N-Type RG-178 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
