USB4105-GF-A-120

Active

GCT

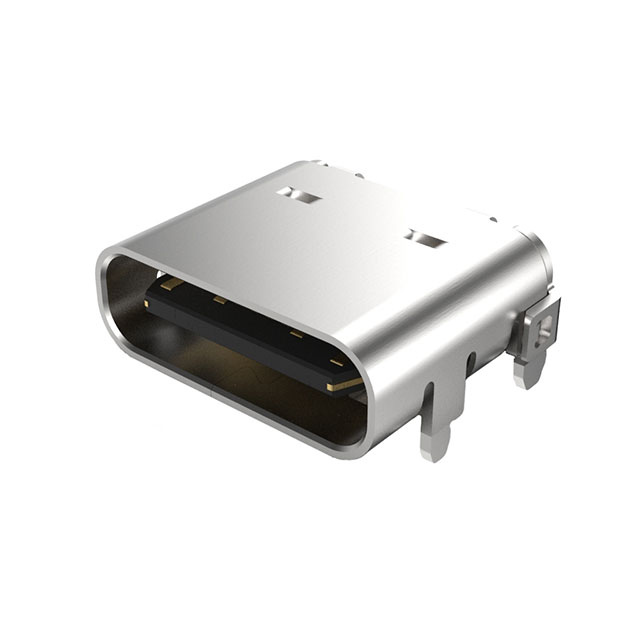

USB CONN, 2.0 TYPE C, R/A RCPT, 16POS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

USB CONN, 2.0 TYPE C, R/A RCPT, 16POS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	USB4105-GF-A-120

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Board Guide, Solder Retention Tab
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	20000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated [custom]	48 VDC

Part	Features	Shielding	Voltage - Rated [custom]	Number of Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Feature	Specifications	Mating Cycles	Shell/Shielding Material	Termination	Material Flammability Rating	Gender	Contact Finish	Mounting Type	Insulation Color	Connector Type	Number of Ports
GCT USB4105-GF-A-120	Board Guide Solder Retention Tab	Shielded	48 VDC	24	85 °C	-40 °C	5 A	Horizontal	USB 2.0	20000	Stainless Steel	Solder	UL94 V-0	Receptacle	Gold	Surface Mount Right Angle Through Hole	Black	USB-C (USB TYPE-C)	1
GCT USB4105-GF-A-060	Board Guide Solder Retention Tab	Shielded	48 VDC	24	85 °C	-40 °C	5 A	Horizontal	USB 2.0	20000	Stainless Steel	Solder	UL94 V-0	Receptacle	Gold	Surface Mount Right Angle Through Hole	Black	USB-C (USB TYPE-C)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
