3780-60-0
ActivePomona Electronics
MINI HOOK TO WIRE LEADS 60"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3780-60-0
ActivePomona Electronics
MINI HOOK TO WIRE LEADS 60"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3780-60-0 |
|---|---|
| 1st Connector | Mini Hook |
| 2nd Connector | Wire Leads |
| Cable Length | 1524 mm |
| Cable Length | 5 ft |
| Configuration | Grabber, Hook to Wire Leads |
| Contents | 1 Lead, Black |
| Current Rating (Amps) | 5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 216 °F |
| Temperature Range | 102 °C |
| Voltage - Rated [custom] | 60 VDC, 30 VAC |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
| 25 | $ 5.35 | |||
Description
General part information
3780 Series

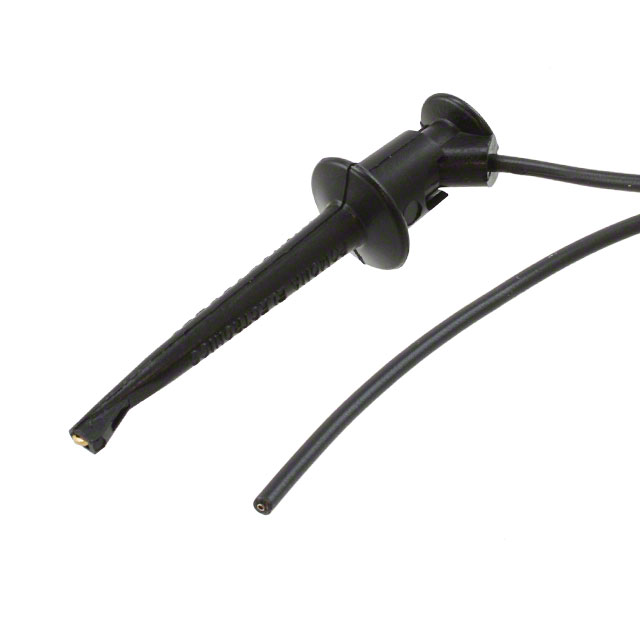

60.0" (1524.00mm) Mini Hook To Wire Leads Test Lead 30VAC, 60VDC 1 Lead, Black
Documents
Technical documentation and resources
