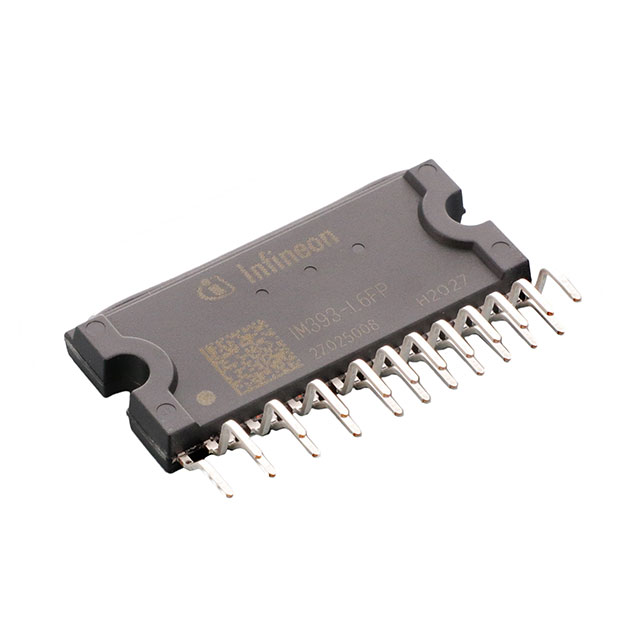

IM393L6FPXKLA1

Obsolete

Infineon Technologies

15A INVERTER POWER MODULE, SIP TINY LARGE, TRIMMED LEADS COATED

Search across all available documentation for this part.

Obsolete

Infineon Technologies

15A INVERTER POWER MODULE, SIP TINY LARGE, TRIMMED LEADS COATED

Technical Specifications

Parameters and characteristics for this part

Specification	IM393L6FPXKLA1

Configuration	3 Phase Inverter
Current	15 A
Mounting Type	Through Hole
Package / Case	26-PowerSIP Module, 22 Leads, Formed Leads
Type	IGBT
Voltage	600 V
Voltage - Isolation	2000 Vrms

Part	Configuration	Type	Mounting Type	Voltage - Isolation	Voltage	Current	Package / Case
Infineon Technologies IM393L6FPXKLA1	3 Phase Inverter	IGBT	Through Hole	2000 Vrms	600 V	15 A	26-PowerSIP Module 22 Leads Formed Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Driver Module IGBT 3 Phase Inverter 600 V 15 A 26-PowerSIP Module, 22 Leads, Formed Leads

Technical documentation and resources

No documents available
