704.062.518
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.062.518
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.062.518 | 704.062 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Pushbutton, Round | Pushbutton, Round |
| Illumination | Illuminated - Green | Illuminated - Green, Illuminated - Yellow, Illuminated - Blue |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Maintained | Maintained |
704.062 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Panel Cutout Dimensions | (Select First, Then Apply Filters) Compatible Series | Illumination | Requires | Actuator Type | Type |
|---|---|---|---|---|---|---|
EAO 704.062.5 | 22.3 mm | 04, EAO | Illuminated - Green | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.418 | 30.5 mm | 04, EAO | Illuminated - Yellow | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.218 | 30.5 mm | 04, EAO | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained | |
EAO 704.062.6 | 22.3 mm | 04, EAO | Illuminated - Blue | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.518 | 30.5 mm | 04, EAO | Illuminated - Green | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.2 | 22.3 mm | 04, EAO | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained | |
EAO 704.062.4 | 22.3 mm | 04, EAO | Illuminated - Yellow | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.618 | 30.5 mm | 04, EAO | Illuminated - Blue | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.88 | |
| 10 | $ 45.39 | |||
| 25 | $ 43.28 | |||
| 50 | $ 40.38 | |||
| 100 | $ 38.79 | |||
| 250 | $ 36.15 | |||
Description
General part information
704.062 Series

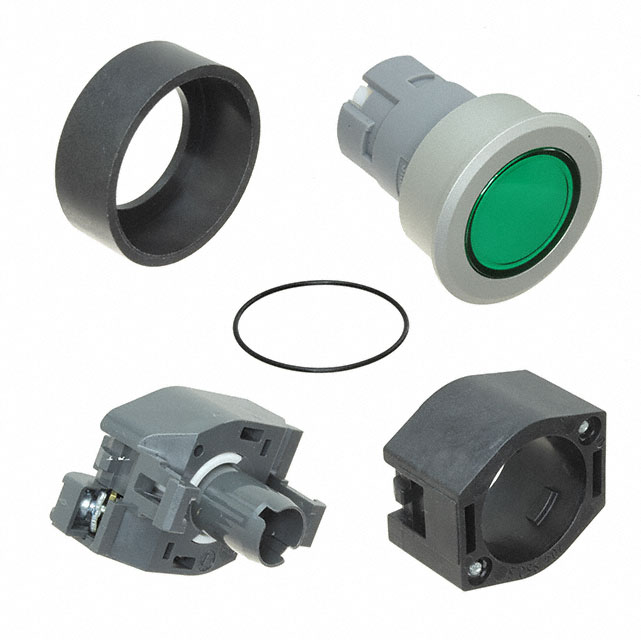

Configurable Switch Body Pushbutton, Round Illuminated - Green
