704.062.2

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.062.2	704.062 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Round	Pushbutton, Round
Illumination	-	Illuminated - Green, Illuminated - Yellow, Illuminated - Blue
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Maintained	Maintained

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series	Illumination	Requires	Actuator Type	Type
EAO 704.062.5	22.3 mm	04, EAO	Illuminated - Green	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.418	30.5 mm	04, EAO	Illuminated - Yellow	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.218	30.5 mm	04, EAO		Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.6	22.3 mm	04, EAO	Illuminated - Blue	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.518	30.5 mm	04, EAO	Illuminated - Green	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.2	22.3 mm	04, EAO		Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.4	22.3 mm	04, EAO	Illuminated - Yellow	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained
EAO 704.062.618	30.5 mm	04, EAO	Illuminated - Blue	Contact Block(s), Illumination Source	Pushbutton, Round	Maintained

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

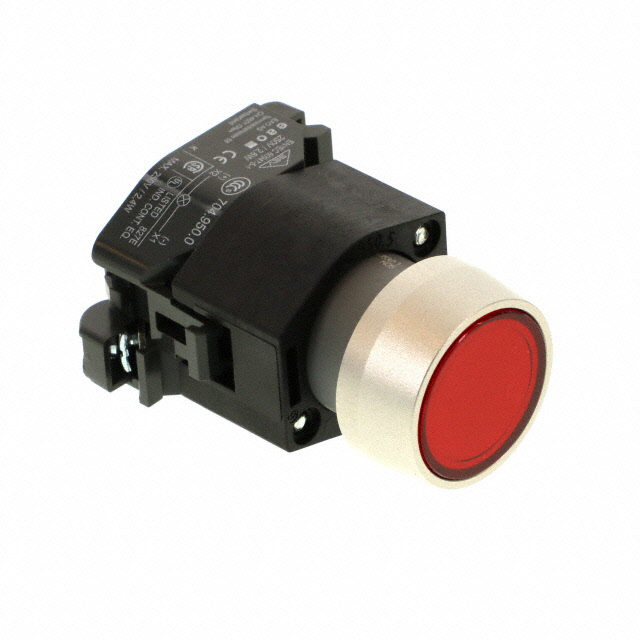

Configurable Switch Body Pushbutton, Round Illuminated - Red
