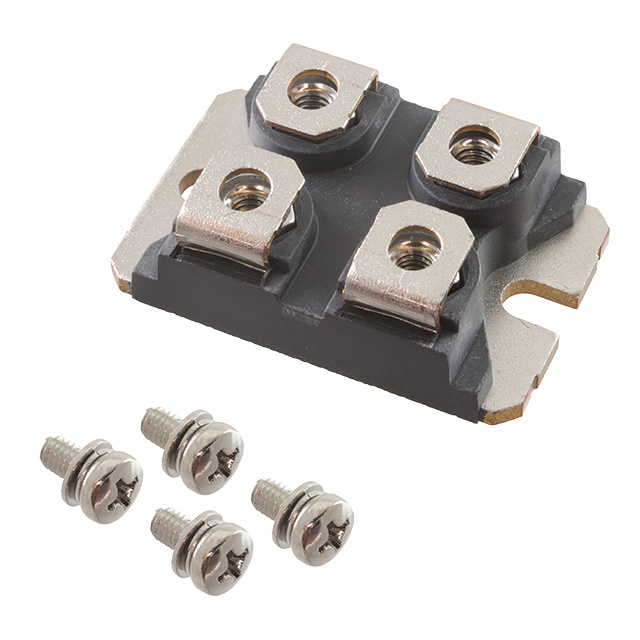

MMO62-12IO6

Active

IXYS

MODULE AC CTLR 1200V SOT-227B

Search across all available documentation for this part.

Active

IXYS

MODULE AC CTLR 1200V SOT-227B

Technical Specifications

Parameters and characteristics for this part

Specification	MMO62-12IO6

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	400 A, 430 A
Current - On State (It (AV)) (Max) [Max]	25 A
Current - On State (It (RMS)) (Max)	39 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-227-4, miniBLOC
Structure	1-Phase Controller - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.2 kV

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Package / Case	Current - On State (It (RMS)) (Max)	Mounting Type	Structure	Current - Gate Trigger (Igt) (Max) [Max] [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm)
IXYS MMO62-12IO6	1.5 V	25 A	1.2 kV	100 mA	2 SCRs	SOT-227-4 miniBLOC	39 A	Chassis Mount	1-Phase Controller - All SCRs	100 mA	150 °C	-40 °C	400 A 430 A
IXYS MMO62-16IO6	1.5 V	25 A	1.6 kV	100 mA	2 SCRs	SOT-227-4 miniBLOC	39 A	Chassis Mount	1-Phase Controller - All SCRs	100 mA	150 °C	-40 °C	400 A 430 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.2 kV 39 A 1-Phase Controller - All SCRs Chassis Mount SOT-227-4, miniBLOC
