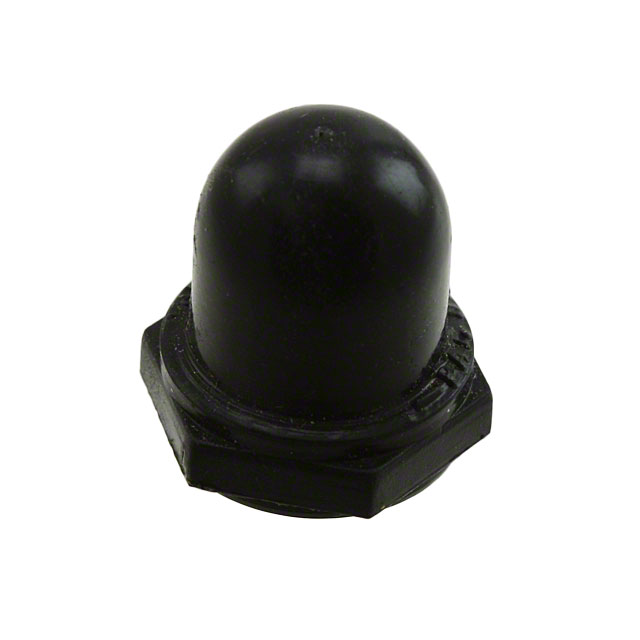

C1231/42

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C1231/42	C1231 Series

Actuator Diameter [diameter]	0.422 in	0.422 in
Actuator Diameter [diameter]	10.72 mm	10.72 mm
Color	Black	Black
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-62 °C	-62 °C
Size / Dimension [z]	0.719 in	0.547 - 0.719 in
Size / Dimension [z]	18.26 mm	13.89 - 18.26 mm
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B
Type	Pushbutton, Full Boot	Pushbutton, Full Boot

PUSHBUTTON FULL BOOT BLACK

Part	Thread Size	Color	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]
APM HEXSEAL C1231/41	15/32-32 NS-2B	Black	0.547 in	13.89 mm	Multiple Series	Silicone Rubber	Front of Panel	-62 °C	204 °C	IP66/IP68	Pushbutton, Full Boot	0.422 in	10.72 mm
APM HEXSEAL C1231/42	15/32-32 NS-2B	Black	0.719 in	18.26 mm	Multiple Series	Silicone Rubber	Front of Panel	-62 °C	204 °C	IP66/IP68	Pushbutton, Full Boot	0.422 in	10.72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT BLACK
