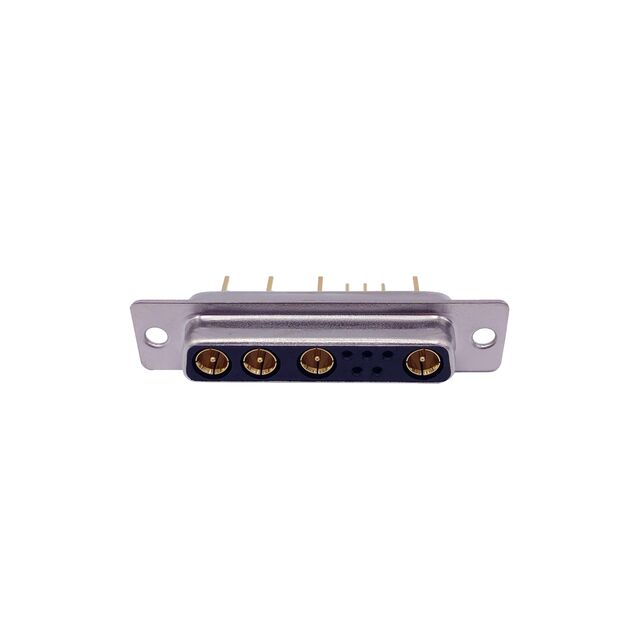

683M9W4203L001
ActiveMH Connectors
FEMALE PANEL MOUNTING 2 -55℃~+125℃ D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
683M9W4203L001
ActiveMH Connectors
FEMALE PANEL MOUNTING 2 -55℃~+125℃ D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 683M9W4203L001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal, Coax |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 5, 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Termination | Solder |
683M9W4 Series
| Part | Contact Finish | Termination | Mounting Type | Connector Type | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Color | Number of Rows | Flange Feature | Material Flammability Rating | Dielectric Material | Contact Type | Contact Finish Thickness | Shell Material, Finish | Contact Material | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Gold | Solder | Panel Mount Through Hole | Receptacle Female Sockets | 3 (DB B) - 9W4 | -55 °C | 125 °C | Combo D-Sub | Black | 2 | Housing/Shell (Unthreaded) | UL94 V-0 | Polybutylene Terephthalate (PBT) | Coax Signal | Flash | Nickel Plated Steel | Brass | 4 5 | |
MH Connectors | Gold | Solder | Panel Mount Through Hole | Male Pins Plug | 3 (DB B) - 9W4 | -55 °C | 125 °C | Combo D-Sub | Black | 2 | 4-40 Board Side | UL94 V-0 | Polybutylene Terephthalate (PBT) | Coax Signal | Flash | Nickel Plated Steel | Brass | 4 5 | Board Lock Grounding Indents |
MH Connectors | Gold | Solder | Panel Mount Through Hole | Receptacle Female Sockets | 3 (DB B) - 9W4 | -55 °C | 125 °C | Combo D-Sub | Black | 2 | 4-40 Board Side | UL94 V-0 | Polybutylene Terephthalate (PBT) | Coax Signal | Flash | Nickel Plated Steel | Brass | 4 5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
683M9W4 Series
9 (5 + 4 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
