PPS13 BK080

Active

ALPHA WIRE

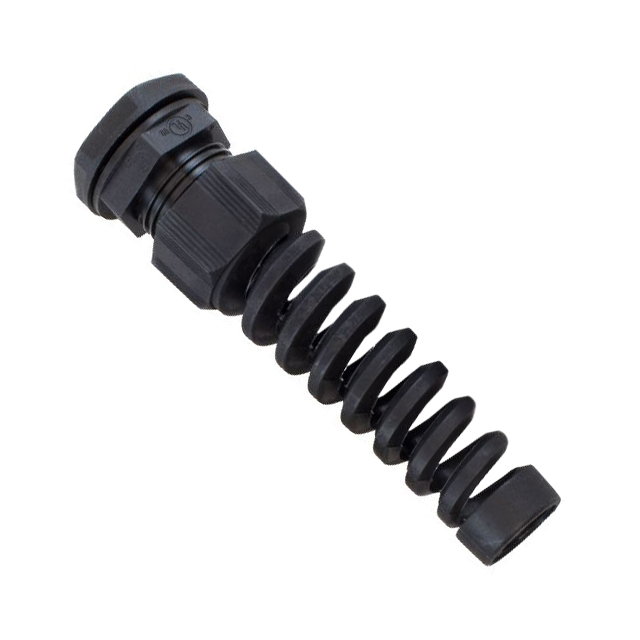

CABLE GLAND 6-12MM PG13.5

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE GLAND 6-12MM PG13.5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG13.5 Black

Technical documentation and resources

Specification	PPS13 BK080	PPS13 Series

Color	Black	Black, Gray
Includes	Gasket, Locknut	Gasket, Locknut
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 in
Panel Hole Size	0.803 in	0.803 in
Panel Hole Size	20.4 mm	20.4 mm
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	PG13.5	PG13.5
Type	Cable Gland	Cable Gland

Part	Ingress Protection	Thread Size	Panel Hole Size	Panel Hole Size	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Color	Material
ALPHA WIRE PPS13 BK080	IP66/IP68	PG13.5	0.803 in	20.4 mm	Gasket, Locknut	0.472 in	12 mm	6 mm	0.236 in	Cable Gland	100 °C	-20 C	10 mm	0.394 in	Black	Polyamide (PA), Nylon
ALPHA WIRE PPS13 SL080	IP66/IP68	PG13.5	0.803 in	20.4 mm	Gasket, Locknut	0.472 in	12 mm	6 mm	0.236 in	Cable Gland	100 °C	-20 C	10 mm	0.394 in	Gray	Polyamide (PA), Nylon
