PSR1636-07

Active

Parlex USA LLC

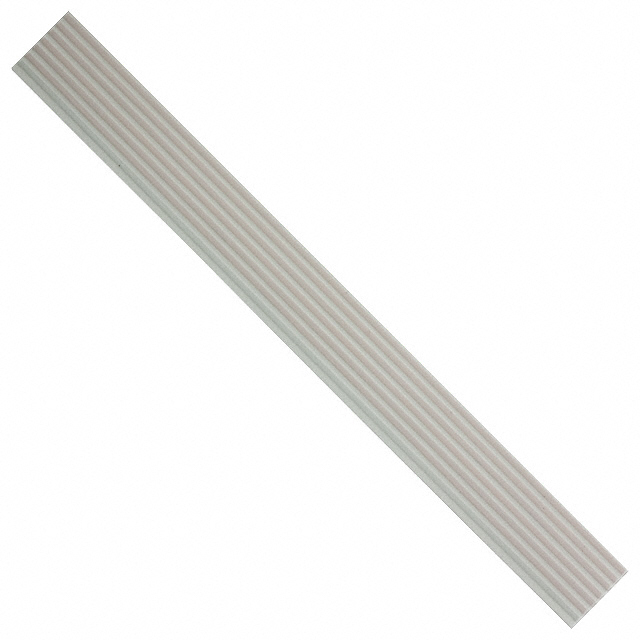

CABLE FFC 7COND 0.050" 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSR1636-07

Active

Parlex USA LLC

CABLE FFC 7COND 0.050" 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 449.45
		5	$ 366.12
		10	$ 335.82

Description

General part information

PSR1636 Series

7 Conductor 0.050" (1.27mm) Flat Flex Cable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSR1636-07	PSR1636 Series

Cable Length	152.4 m	152.4 m
Cable Length	500 ft	500 ft
Cable Width	-	0.3 - 2.8 in
Cable Width	-	7.57 - 71.12 mm
Cable Width	-	12.7 - 29.21 mm
Cable Width	-	0.5 - 1.15 in
Cable Width [y]	0.4 in	0.4 - 0.9 in
Cable Width [y]	10.16 mm	10.16 - 22.86 mm
Conductor Material	Copper, Bare	Copper, Bare
Current Rating (Amps)	2.5 A	2.5 A
Features	Conductor 1 Tinned	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester	Polyester
Jacket (Insulation) Thickness	0.05 mm	0.05 mm
Jacket (Insulation) Thickness	0.002 in	0.002 in
Number of Conductors	7	5 - 55
Operating Temperature	105 C	105 C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 2643	UL Style 2643
Voltage Rating	300 VDC	300 VDC
Wire Gauge	30 AWG	30 AWG

PSR1636 Series

CABLE FFC 20COND 0.050" 500'

Part	Cable Length	Cable Length	Pitch [x]	Pitch [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Features	Current Rating (Amps)	Cable Width	Cable Width	Number of Conductors	Voltage Rating	Ratings	Conductor Material	Wire Gauge	Operating Temperature	Cable Width [y]	Cable Width [y]
Parlex USA LLC PSR1636-20	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1.05 in	26.67 mm	20	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-07	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A			7	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C	0.4 in	10.16 mm
Parlex USA LLC PSR1636-29	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1.5 in	38.1 mm	29	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-50	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	2.55 in	64.77 mm	50	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-19	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1 in	25.4 mm	19	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-23	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1.2 in	30.48 mm	23	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-12	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	0.65 in	16.51 mm	12	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-27	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1.4 in	35.56 mm	27	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-36	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	1.85 in	46.99 mm	36	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
Parlex USA LLC PSR1636-55	152.4 m	500 ft	0.05 in	1.27 mm	0.05 mm	0.002 in	Polyester	Conductor 1 Tinned	2.5 A	2.8 in	71.12 mm	55	300 VDC	UL Style 2643	Copper, Bare	30 AWG	105 C
