AB-FA024UC-19700-XA1

Active

American Bright Optoelectronics Corporation

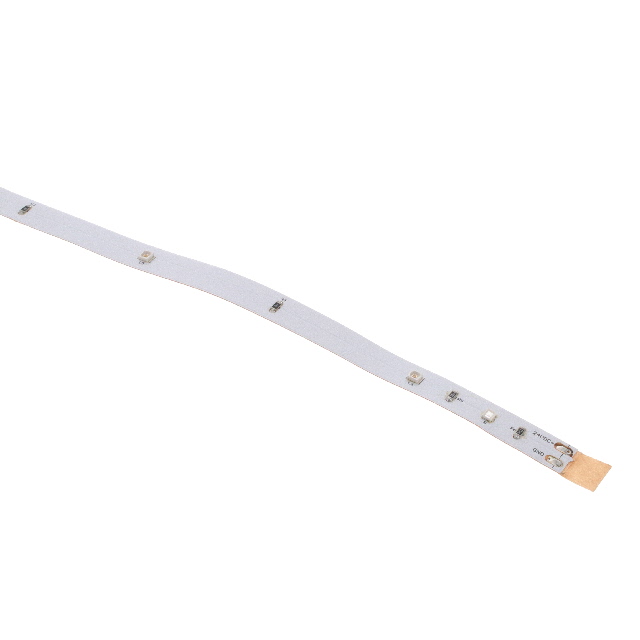

LED MOD AB-FA UVA LNR STRP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA UVA LNR STRP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-FA024UC-19700-XA1	AB-FA024 Series

Color	UltraViolet	UltraViolet, Blue
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Max [Max]	525 mA	525 - 625 mA
Current - Test	105 mA	105 - 330 mA
Features	IP20	IP20
Height	-	1.6 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	-	19 lm/W
Luminous Flux @ Current/Temperature	-	144 lm
Size / Dimension	-	50.00mm L per Segment
Size / Dimension [x]	5000 mm	5000 mm
Size / Dimension [y]	10 mm	8 - 10 mm
Type	LED Module	LED Module
Viewing Angle	125 °	120 - 125 °
Voltage - Forward (Vf) (Typ)	24 V	24 V
Wavelength	275 nm	275 - 470 nm
Wavelength [Max]	278 nm	278 - 475 nm
Wavelength [Min]	272 nm	272 - 465 nm

LED MOD AB-FA UVA LNR STRP

Part	Current - Max [Max]	Configuration	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Type	Viewing Angle	Color	Lens Type	Features	Wavelength	Wavelength [Min]	Wavelength [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension	Luminous Flux @ Current/Temperature	Height [z]	Lumens/Watt @ Current - Test
American Bright Optoelectronics Corporation AB-FA024UC-19700-XA2	625 mA	Flexible, Linear Light Strip	125 mA	5000 mm	10 mm	LED Module	120 °	UltraViolet	Flat	IP20	275 nm	272 nm	278 nm	24 V
American Bright Optoelectronics Corporation AB-FA024BL-19700-XA1		Flexible, Linear Light Strip	330 mA	5000 mm	8 mm	LED Module	120 °	Blue	Flat	IP20	470 nm	465 nm	475 nm	24 V	50.00mm L per Segment	144 lm	1.6 mm	19 lm/W
American Bright Optoelectronics Corporation AB-FA024UC-19700-XA1	525 mA	Flexible, Linear Light Strip	105 mA	5000 mm	10 mm	LED Module	125 °	UltraViolet	Flat	IP20	275 nm	272 nm	278 nm	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 316.88

General part information

LED Lighting COBs Engines Modules LED Module AB-FA Ultraviolet Linear Light Strip, Flexible
