RT9116GQW

Active

Richtek USA Inc.

IC AMP CLASS D STEREO 10W 28WQFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC AMP CLASS D STEREO 10W 28WQFN

Technical Specifications

Parameters and characteristics for this part

Specification	RT9116GQW

Features	Short Circuit Protection
Max Output Power x Channels @ Load	10 W, 2 channels
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)

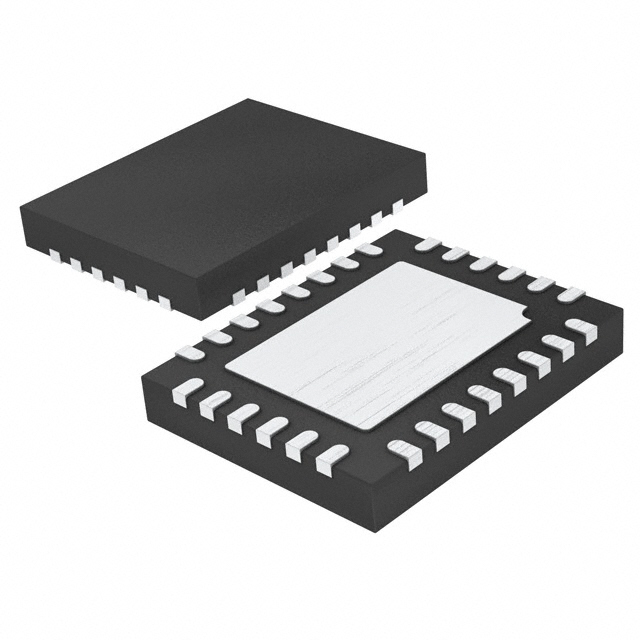

Package / Case	28-WFQFN Exposed Pad
Supplier Device Package	28-WQFN (4x5)
Type	Class D
Voltage - Supply [Max]	17 V
Voltage - Supply [Min]	8 V

Part	Features	Type	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Package / Case	Output Type
Richtek USA Inc. RT9116GQW	Short Circuit Protection	Class D	Surface Mount	28-WQFN (4x5)	17 V	8 V	85 °C	-40 °C	2 channels 10 W	28-WFQFN Exposed Pad	2-Channel (Stereo)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amplifier IC 2-Channel (Stereo) Class D 28-WQFN (4x5)

Technical documentation and resources

No documents available
