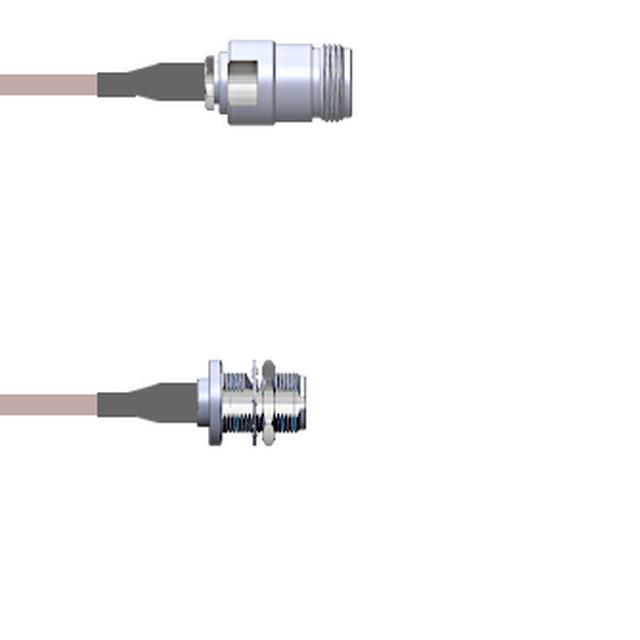

Q-1V021000R.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V021000R.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V021000R.25M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1V0210 Series

Part	Frequency - Max [Max]	Overall Impedance	Features	2nd Connector	1st Connector Mounting Type	1st Connector Mounting Feature	Length	Length	Style	Cable Type	2nd Connector Mounting Type	Color	1st Connector	2nd Contact Gender	1st Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1V021000R006i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	152.4 mm	6 in	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female
Amphenol Custom Cable Q-1V021000R001M	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	1 m	39.4 in	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female	3.3 ft
Amphenol Custom Cable Q-1V021000R.75M	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	750 mm	29.53 "	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female
Amphenol Custom Cable Q-1V021000R060i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	1.5 m	5 '	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female	5 ft
Amphenol Custom Cable Q-1V021000R.25M	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut			N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female		9.843 "	250 mm
Amphenol Custom Cable Q-1V021000R009i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	228.6 mm	9 "	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female
Amphenol Custom Cable Q-1V021000R012i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	304.8 mm	12 "	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female
Amphenol Custom Cable Q-1V021000R036i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	91.44 cm	36 in	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female
Amphenol Custom Cable Q-1V021000R108i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	2.7 m	108 in	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female	9 ft
Amphenol Custom Cable Q-1V021000R084i	11 GHz	50 Ohms	Shielded	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	2.1 m	84 in	N-Type to N-Type	RG-316 DB	Free Hanging (In-Line)	Copper	N-Type Jack	Female	Female	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 147.76
		25	$ 146.76
		50	$ 145.76
		100	$ 144.77
		250	$ 143.77

Description

General part information

Q-1V0210 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 DB 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
