3624-42

Active

3M (TC)

CRIMP TOOL, HAND, 3M 3586-12 PISTOL GRIP, 3624 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Operating Instructions EN

3624-42

Active

3M (TC)

CRIMP TOOL, HAND, 3M 3586-12 PISTOL GRIP, 3624 SERIES

Deep-Dive with AI

DocumentsDatasheet Operating Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3624-42

Compatible Tools	3586-12
For Use With/Related Products	0.100" Wiremount Sockets, 22-28 AWG
Specifications	Military/DIN 41612
Tool Type	Die Head

3624 Series

Part	Tool Type	Compatible Tools	For Use With/Related Products	Specifications
3M (TC) 3624-41	Die Head	3586-12	0.100" Wiremount Sockets 22-28 AWG
3M (TC) 3624-42	Die Head	3586-12	0.100" Wiremount Sockets 22-28 AWG	Military/DIN 41612

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1149.36
		5	$ 1109.73
Newark	Each	1	$ 1220.82
		2	$ 1149.48

Description

General part information

3624 Series

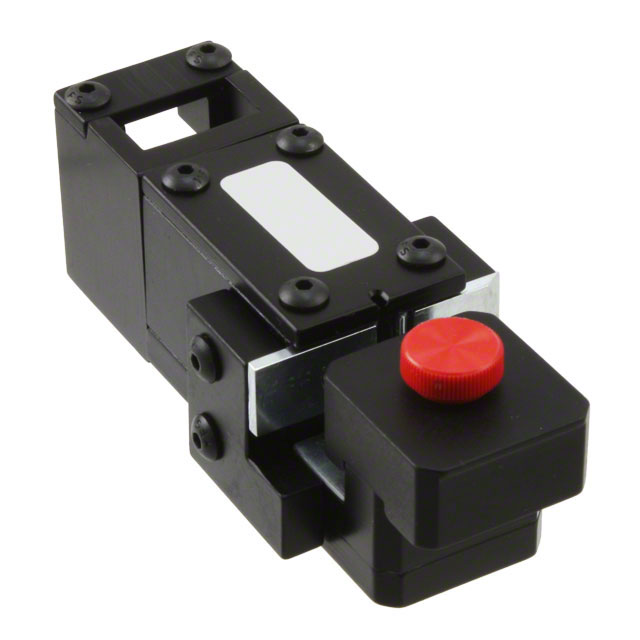

The 3624-42 is an Assembly Head suitable for MIL and DIN polarized CHG connector. The assembly head is preset at the factory and no backstop adjustment is required.
