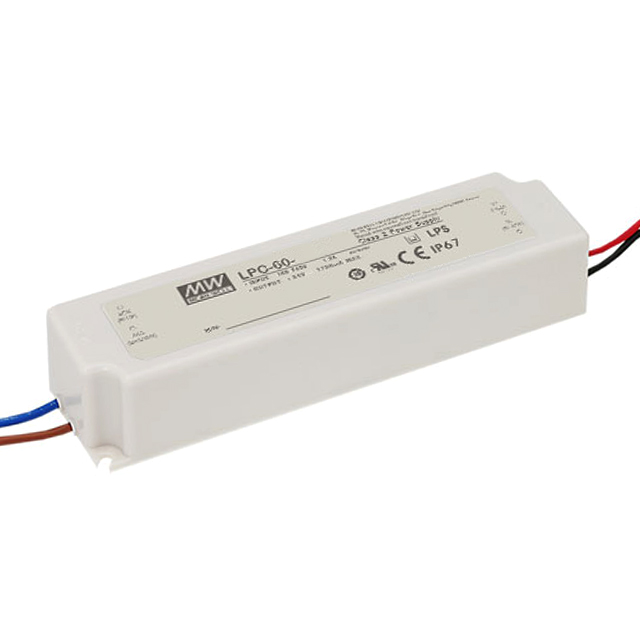

LPC-60-1400

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-42V 1.4A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-42V 1.4A

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Features	Termination Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Power (Watts)	Type	Approval Agency
MEAN WELL USA Inc. LPC-60-1750	1.75 A	87 %	3000 V	IP67	70 °C	-30 ░C	1	264 VAC	90 VAC	Chassis Mount	OVP	Wire Leads	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "	34 V	9 V	AC DC Converter	60 W	Constant Current	CB CE cURus
MEAN WELL USA Inc. LPC-60-1400	1.4 A	85 %	3000 V	IP67	70 °C	-30 ░C	1	264 VAC	90 VAC	Chassis Mount	OVP	Wire Leads	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "	42 V	9 V	AC DC Converter	59 W	Constant Current	CB CE UR
MEAN WELL USA Inc. LPC-60-1050	1.05 A	87 %	3000 V	IP67	70 °C	-30 ░C	1	264 VAC	90 VAC	Chassis Mount	OVP	Wire Leads	1.26 in	6.4 in	162.5 mm	42.5 mm	32 mm	1.67 "	48 V	9 V	AC DC Converter	50 W	Constant Current	CB CE UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 9 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
