RTK7TBS5D3S00001BU
ActiveTARGET BOARD KIT, S5D3, 32 BIT, ARM CORTEX-M4, SYNERGY FAMILY
Deep-Dive with AI
Search across all available documentation for this part.
RTK7TBS5D3S00001BU
ActiveTARGET BOARD KIT, S5D3, 32 BIT, ARM CORTEX-M4, SYNERGY FAMILY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RTK7TBS5D3S00001BU | YSTBS5 Series |
|---|---|---|
| - | - | |
| Board Type | Evaluation Platform | Evaluation Platform |
| Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F, ARM® Cortex®-M4 |
| Interconnect System | Pmod | Pmod |
| Mounting Type | Fixed | Fixed |
| Platform | Synergy™ | Synergy™ |
| Suggested Programming Environment | Synergy | Synergy |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | S5D3 | S5D3, S5D5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.86 | |
| 10 | $ 36.25 | |||
YSTBS5 Series
TARGET BOARD KIT, S5D3, 32 BIT, ARM CORTEX-M4, SYNERGY FAMILY
| Part | Suggested Programming Environment | Core Processor | Utilized IC / Part | Platform | Contents | Interconnect System | Type | Mounting Type | Board Type |
|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation RTK7TBS5D3S00001BU | Synergy | ARM® Cortex®-M4F | S5D3 | Synergy™ | Board(s), Cable(s) | Pmod | MCU 32-Bit | Fixed | Evaluation Platform |
Renesas Electronics Corporation RTK7TBS5D3S00001BU | |||||||||
Renesas Electronics Corporation RTK7TBS5D5S00001BU | Synergy | ARM® Cortex®-M4 | S5D5 | Synergy™ | Board(s), Cable(s) | Pmod | MCU 32-Bit | Fixed | Evaluation Platform |
Renesas Electronics Corporation RTK7TBS5D5S00001BU |
Description
General part information
YSTBS5 Series

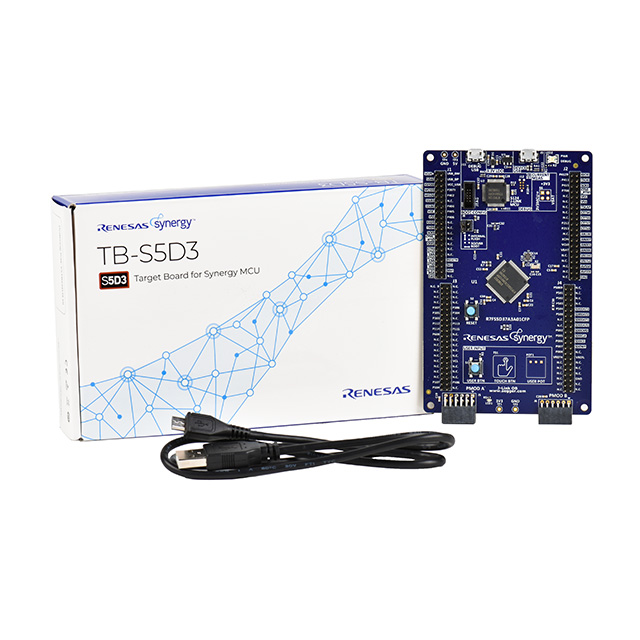

RTK7TBS5D3S00001BU is a TB-S5D3 target board kit. The TB-S5D3 target board kit enables users to evaluate, prototype and develop IoT endpoint designs and experience best-in-class connectivity with the 120MHz Arm® Cortex®-M4 core, S5D3 microcontrollers (MCUs). Users can experience the full features of the Synergy™ S5D3 MCUs with access to all pins, standardized expansion ports and preinstalled demo software. This security and encryption functions enable secure data communications and storage, with support for industry standard algorithms such as AES 128/256.
Documents
Technical documentation and resources
