CDFR17W2113L462
ActiveMH Connectors

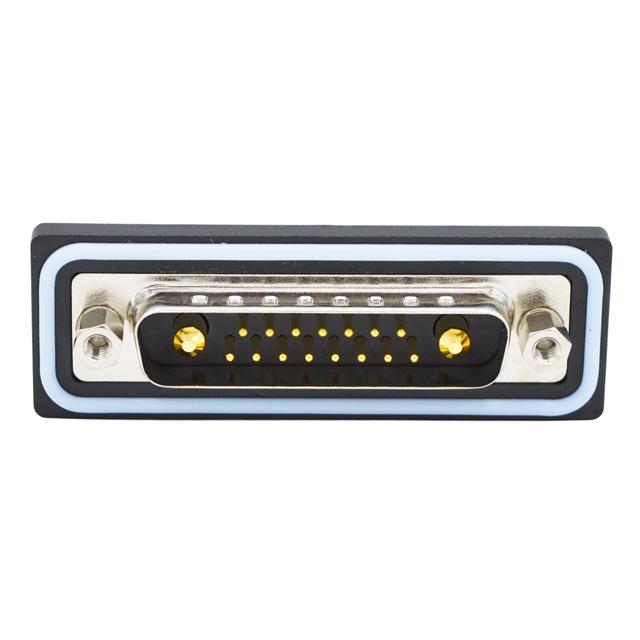

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-17W2, PLUG, 17 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
CDFR17W2113L462
ActiveMH Connectors
COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DB-17W2, PLUG, 17 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFR17W2113L462 |
|---|---|
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal and Power |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions [custom] | 15 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 17W2, 3 (DB, B) |
| Termination | Solder |
CDFR17W Series
| Part | Contact Finish | Shell Material, Finish | Termination | Dielectric Material | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Features | Contact Material | Material Flammability Rating | Contact Finish Thickness | Ingress Protection | Contact Type | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Board Lock Grounding Indents Mounting Brackets | Brass | UL94 V-0 | Flash | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | ||
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Board Lock Grounding Indents Mounting Brackets | Brass | UL94 V-0 | Flash | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | ||
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Grounding Indents | Brass | UL94 V-0 | Flash | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | ||
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Grounding Indents | Brass | UL94 V-0 | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | |
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Grounding Indents | Brass | UL94 V-0 | Flash | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | ||
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Grounding Indents | Brass | UL94 V-0 | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | |
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Receptacle Female Sockets | 2 | Board Lock Mounting Brackets | Brass | UL94 V-0 | Flash | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | ||
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Receptacle Female Sockets | 2 | Board Lock Mounting Brackets | Brass | UL94 V-0 | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | |
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Board Lock Grounding Indents Mounting Brackets | Brass | UL94 V-0 | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | |
MH Connectors | Gold | Nickel Plated Steel | Solder | Polybutylene Terephthalate (PBT) | 17W2 3 (DB B) | -25 °C | 85 °C | Male Pins Plug | 2 | Board Lock Grounding Indents Mounting Brackets | Brass | UL94 V-0 | IP67 - Dust Tight Waterproof | Signal and Power | Combo D-Sub | 15 | 2 | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CDFR17W Series
17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
