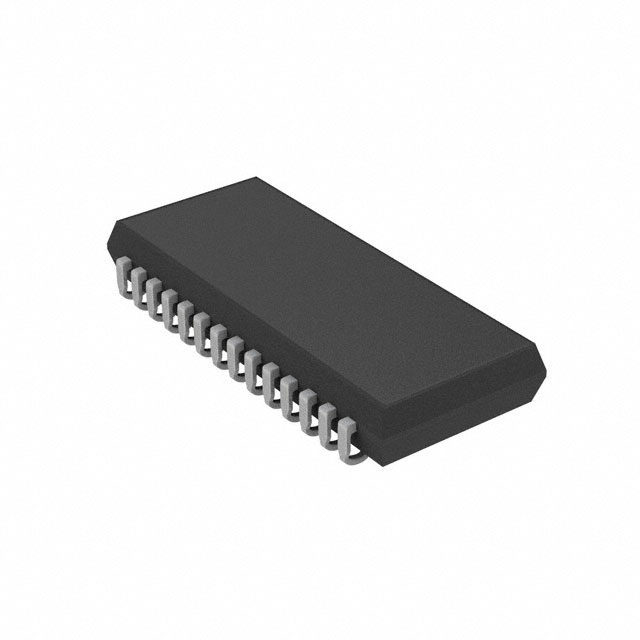

AS7C256A-10JINTR

Active

Alliance Memory, Inc.

IC SRAM 256KBIT PARALLEL 28SOJ

Search across all available documentation for this part.

Active

Alliance Memory, Inc.

IC SRAM 256KBIT PARALLEL 28SOJ

Technical Specifications

Parameters and characteristics commom to parts in this series

SRAM CHIP ASYNC SINGLE 5V 256K-BIT 32K X 8 20NS 28-PIN SOJ

Part	Mounting Type	Write Cycle Time - Word, Page	Access Time	Package / Case	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Organization	Technology	Memory Format	Memory Type	Memory Size	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case [x]
Alliance Memory, Inc. AS7C256A-20JINTR	Surface Mount	20 ns	20 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	85 °C	-40 °C
Alliance Memory, Inc. AS7C256A-15JCN	Surface Mount	15 ns	15 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	70 °C	0 °C
Alliance Memory, Inc. AS7C256A-12JIN	Surface Mount	12 ns	12 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	85 °C	-40 °C
Alliance Memory, Inc. AS7C256A-15TCNTR	Surface Mount	15 ns	15 ns			28-TSSOP	4.5 V	5.5 V	28-TSOP I	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	70 °C	0 °C	11.8 mm	0.465 "
Alliance Memory, Inc. AS7C256A-10JINTR	Surface Mount	10 ns	10 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	85 °C	-40 °C
Alliance Memory, Inc. AS7C256A-10JIN	Surface Mount	10 ns	10 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	85 °C	-40 °C
Alliance Memory, Inc. AS7C256A-15JCNTR	Surface Mount	15 ns	15 ns	7.62 mm	0.3 in	28-BSOJ	4.5 V	5.5 V	28-SOJ	32K x 8	SRAM - Asynchronous	SRAM	Volatile	32 KB	Parallel	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.51

General part information

SRAM - Asynchronous Memory IC 256Kbit Parallel 10 ns 28-SOJ

Technical documentation and resources

No documents available
