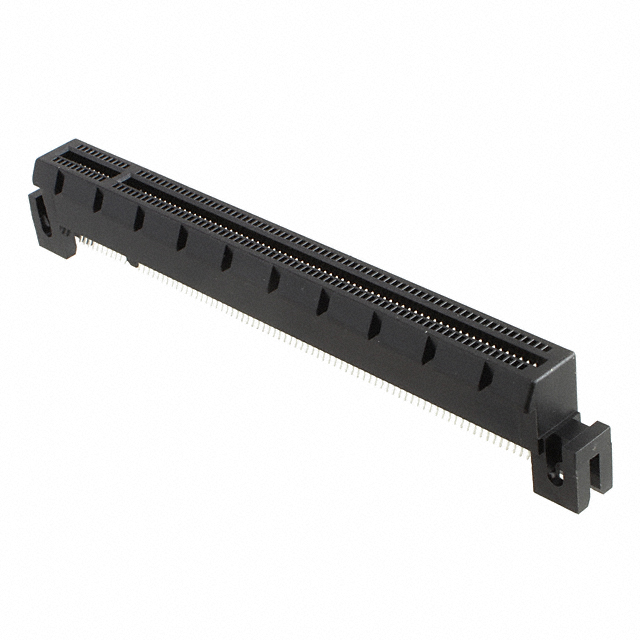

Specification	10025026-10003TLF

Card Thickness	0.062 in
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Locking Ramp, Card Extender
Flange Feature	Straddle Mount Opening, Unthreaded
Flange Feature Opening Size	0.079 in
Gender	Female
Material - Insulation	Nylon, Polyamide, PA, Glass Filled
Mounting Type	Straddle Mount, Board Edge
Number of Positions	164
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.039 in
Read Out	Dual
Termination	Solder

10025026 Series

Part	Contact Material	Contact Type	Flange Feature Opening Size	Flange Feature	Number of Rows	Contact Finish	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Features	Read Out	Card Thickness	Gender	Card Type	Color	Number of Positions	Termination	Pitch	Mounting Type	Material - Insulation	Contact Finish Thickness (string set options)	Contact Finish Thickness
Amphenol ICC (FCI) 10025026-10003HLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	30 µin	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide
Amphenol ICC (FCI) 10025026-10202TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	98	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
Amphenol ICC (FCI) 10025026-10103TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	15 µin	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide
Amphenol ICC (FCI) 10025026-10201TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	64	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
Amphenol ICC (FCI) 10025026-10203PLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
Amphenol ICC (FCI) 10025026-10200TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	36	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
Amphenol ICC (FCI) 10025026-10003TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	30 µin	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide
Amphenol ICC (FCI) 10025026-10003SLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	30 µin	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide
Amphenol ICC (FCI) 10025026-10203TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
Amphenol ICC (FCI) 10025026-30103TLF	Copper Alloy	Cantilever	0.079 in	Straddle Mount Opening Unthreaded	2	Gold	0	-55 °C	85 °C	Card Extender Locking Ramp	Dual	0.062 in	Female	PCI Express™	Black	164	Solder	0.039 in	Board Edge Straddle Mount	Glass Filled Nylon PA Polyamide	Flash	Flash
