UM52011SHORTSET

Active

Bopla Enclosures

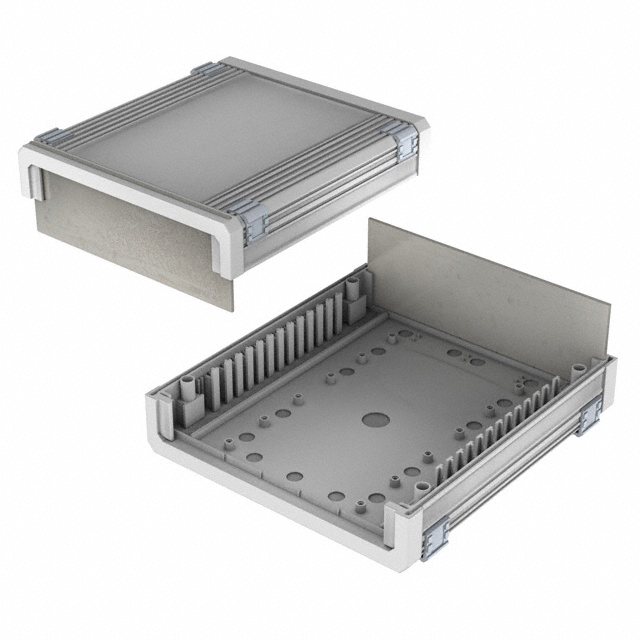

BOX ABS GRAY 8.83"L X 7.83"W

Search across all available documentation for this part.

Active

Bopla Enclosures

BOX ABS GRAY 8.83"L X 7.83"W

Technical Specifications

Parameters and characteristics for this part

Specification	UM52011SHORTSET

Area (L x W)	446 cm²
Area (L x W)	69.1 in²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Height [z]	72.4 mm
Height [z]	2.85 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	8.827 in
Size / Dimension [x]	224.2 mm
Size / Dimension [y]	7.831 in
Size / Dimension [y]	198.9 mm
Thickness	0.138 in
Thickness	3.5 mm
Weight	589.7 g
Weight	1.3 lbs

BOX ABS GRAY 8.83"L X 7.83"W

Part	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Weight	Weight	Design	Color	Material Flammability Rating	Ratings	Container Type
Bopla Enclosures UM52011SHORTSET	0.138 in	3.5 mm	7.831 in	8.827 in	224.2 mm	198.9 mm	Plastic, ABS	72.4 mm	2.85 in	446 cm²	69.1 in²	589.7 g	1.3 lbs	Split Sides and End Panel(s)	Gray	UL94 HB	IP40	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Split Sides and End Panel(s) 8.827" L x 7.831" W (224.20mm x 198.90mm) X 2.850" (72.40mm)
