ER2155-000
ActiveTE Connectivity Raychem Cable Protection
TMS-CT-50M-1-OUT-0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ER2155-000 |
|---|---|
| Color | Black |
| Inner Diameter - Recovered [diameter] | 0.333 " |
| Inner Diameter - Recovered [diameter] | 8.46 mm |
| Inner Diameter - Supplied [diameter] | 1 in |
| Inner Diameter - Supplied [diameter] | 25.4 mm |
| Length | 164 ft |
| Length | 50 m |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness [custom] | 0.025 " |
| Recovered Wall Thickness [custom] | 0.64 mm |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.03 | |
| 2 | $ 31.30 | |||
| 3 | $ 29.80 | |||
| 5 | $ 28.02 | |||
| 7 | $ 26.90 | |||
| 10 | $ 25.77 | |||
| 25 | $ 23.07 | |||
| 50 | $ 21.22 | |||
| 100 | $ 20.87 | |||
Description
General part information
ER2155 Series

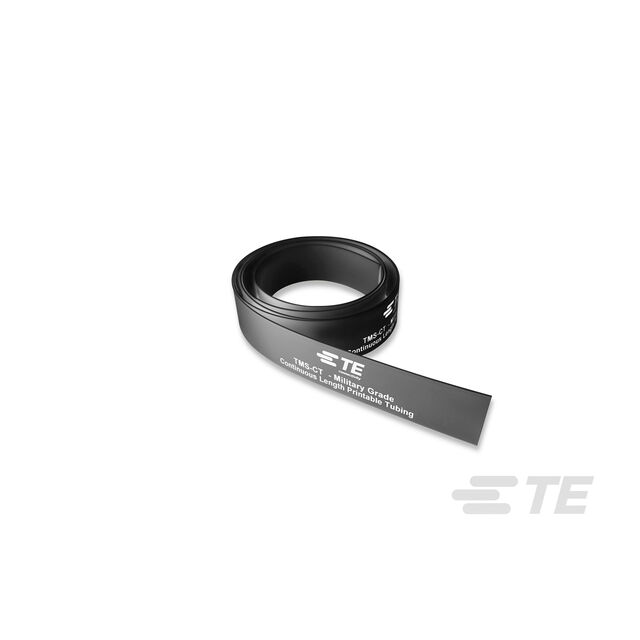

Continuous, Military, 3:1, Black, 25.4 mm [1 in] Expanded Inside, Shrinks To 8.46 mm [.333 in], -55 – 135 °C [-67 – 275 °F], TMS-CT, Printable Tubing
