VFP-876 3/32" 500'RL

Active

HEATSHRK VFP876 3/32"X4" 1=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet VFP-876 Tubing

VFP-876 3/32" 500'RL

Active

HEATSHRK VFP876 3/32"X4" 1=50PC

Deep-Dive with AI

DocumentsDatasheet VFP-876 Tubing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VFP-876 3/32" 500'RL	VFP-876 Series

Color	Black	Black, White
Features	Corrosion Resistant, Self Extinguishing, Flame Retardant	Corrosion Resistant, Self Extinguishing, Flame Retardant
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered	-	0.58 mm
Inner Diameter - Recovered [diameter]	1.17 mm	0.023 - 25.4 mm
Inner Diameter - Recovered [diameter]	0.046 in	0.031 - 1 in
Inner Diameter - Supplied	-	0.046 - 2 in
Inner Diameter - Supplied [diameter]	0.093 in	0.093 - 50.8 mm
Inner Diameter - Supplied [diameter]	2.36 mm	2.36 mm
Length	3000 ", 0.125 ', 5 ', 25 ft, 50 ft	0.062 - 3000 '
Length	76.2 m, 38.1 mm, 152.4 mm, 1.52 m, 7.6 m, 15.2 m	1.52 - 304.8 mm
Length	1.5 ", 6 "	0.75 - 6 "
Length	0.5 '	0.5 '
Length [x]	4 "	4 "
Length [x]	0.333 ft	0.333 - 500 ft
Length [x]	101.6 mm	1.22 - 152.4 m
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.02 in	0.016 - 0.045 in
Recovered Wall Thickness	0.51 mm	0.41 - 1.14 mm
Recovered Wall Thickness	-	0.025 "
Recovered Wall Thickness	-	0.64 mm
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

VFP-876 Series

HEATSHRINK 1/4 BK 6"PC

Part	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Material	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Shelf Life Start	Shelf Life	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length	Shrink Temperature	Shrinkage Ratio	Features	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Length	Length [x]	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]
3M VFP-876-1/4-BLACK	0.025 "	0.64 mm	Polyolefin (PO)	Tubing, Flexible	0.125 in	3.18 mm	Date of Manufacture	120 Months	135 °C	-55 °C	152.4 mm	6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	0.25 in	6.35 mm
3M VFP-876-2-BLACK			Polyolefin (PO)	Tubing, Flexible	1 in		Date of Manufacture	120 Months	135 °C	-55 °C	152.4 mm	6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	2 in	50.8 mm	25.4 mm	0.045 in	1.14 mm
3M VFP-876-1/4-WHITE-200'	0.025 "	0.64 mm	Polyolefin (PO)	Tubing, Flexible	0.125 in	3.18 mm	Date of Manufacture	120 Months	135 °C	-55 °C				100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	White	27 °C, 80 °F	10 °C	0.25 in	6.35 mm				61 m	200 ft
3M VFP-876-1/8-BLACK			Polyolefin (PO)	Tubing, Flexible	0.062 in		Date of Manufacture	120 Months	135 °C	-55 °C	152.4 mm	6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	0.125 "	3.18 mm	1.57 mm	0.02 in	0.51 mm
3M VFP-876 3/16" 250'RL			Polyolefin (PO)	Tubing, Flexible		2.36 mm	Date of Manufacture	120 Months	135 °C	-55 °C	1.52 m, 7.6 m, 15.2 m, 19.05 mm, 25.4 mm, 38.1 mm, 76.2 m, 76.2 mm	0.75 ", 1 in, 1.5 ", 3 "		100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	0.187 in	4.75 mm		0.02 in	0.51 mm	30.5 m, 101.6 mm	0.333 ft, 100 ft	0.062 ', 0.083 ft, 0.125 ', 0.25 ft, 5 ', 25 ft, 50 ft, 3000 "	4 "	0.093 in
3M VFP-876 2" 100'RL			Polyolefin (PO)	Tubing, Flexible	1 in		Date of Manufacture	120 Months	135 °C	-55 °C				100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	2 in	50.8 mm	25.4 mm	0.045 in	1.14 mm	30.5 m	100 ft
3M VFP-876 1" 100'RL			Polyolefin (PO)	Tubing, Flexible	0.5 in		Date of Manufacture	120 Months	135 °C	-55 °C	1.52 m, 7.6 m, 15.2 m, 25.4 mm, 76.2 mm, 152.4 mm	1 in, 3 ", 6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	1 in	25.4 mm	12.7 mm	0.035 in	0.89 mm	30.5 m, 101.6 mm	0.333 ft, 100 ft	0.083 ft, 0.25 ft, 5 ', 25 ft, 50 ft	4 "
3M VFP-876 1/16"1000'RL			Polyolefin (PO)	Tubing, Flexible	0.031 in		Date of Manufacture	120 Months	135 °C	-55 °C	1.52 m, 7.6 m, 15.2 m, 19.05 mm, 50.8 mm, 76.2 m, 76.2 mm, 152.4 mm, 304.8 m	0.75 ", 2 ", 3 ", 6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	0.063 in	1.6 mm	0.79 mm	0.017 in	0.43 mm	30.5 m	100 ft	0.062 ', 0.167 ', 0.25 ft, 5 ', 25 ft, 50 ft, 1000 ft, 3000 "
3M VFP-876 3/32" 500'RL			Polyolefin (PO)	Tubing, Flexible	0.046 in		Date of Manufacture	120 Months	135 °C	-55 °C	1.52 m, 7.6 m, 15.2 m, 38.1 mm, 76.2 m, 152.4 mm	1.5 ", 6 "	0.5 '	100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C		0.093 in	1.17 mm	0.02 in	0.51 mm	101.6 mm	0.333 ft	0.125 ', 5 ', 25 ft, 50 ft, 3000 "	4 "		2.36 mm
3M VFP-876-1/16-48-BLACK			Polyolefin (PO)	Tubing, Flexible	0.031 in		Date of Manufacture	120 Months	135 °C	-55 °C				100 °C	2 to 1	Corrosion Resistant, Flame Retardant, Self Extinguishing	Black	27 °C, 80 °F	10 °C	0.063 in	1.6 mm	0.79 mm	0.017 in	0.43 mm	1.22 m	4 ft

Description

General part information

VFP-876 Series

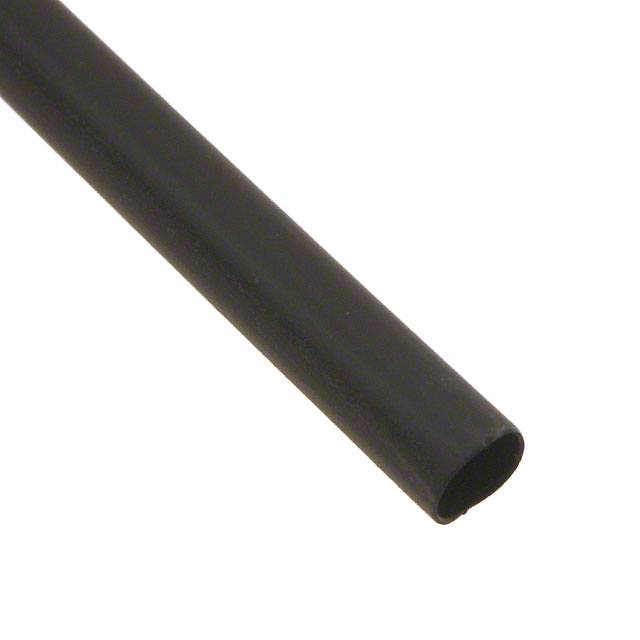

Heat Shrink Tubing, Flexible 0.093" (2.36mm) 2 to 1 Black 0.333' (101.60mm, 4.00")
